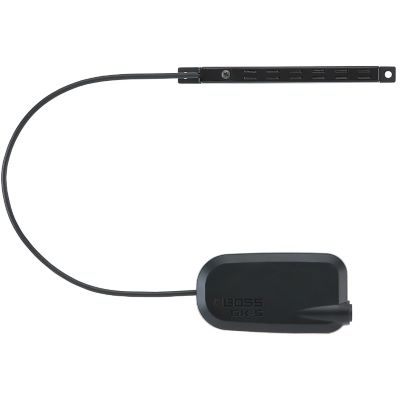

Boss GK-5 Guitar Synth Pickup

The GK-5 hexaphonic pickup is a specialized guitar pickup designed specifically for the GM-800 and other BOSS guitar synthesizer products. Unlike conventional guitar pickups that send all string signals to a common output, the GK-5 senses each string individually and sends the respective signals to separate outputs within the Serial GK system. Compatible BOSS products can process this isolated string information, offering a wide range of possibilities not possible with standard pickups.

Features:

• Groundbreaking hexaphonic pickup for guitars with steel strings
• Compatible with Serial GK interface in new BOSS guitar synthesizer products
• Stable digital signal transmission
• Lightweight and compact connector housing with lower profile than previous GK pickups
• Low profile, slim pickup fits most standard electric guitars

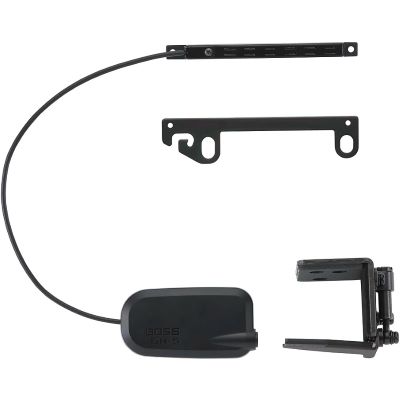

• Includes mounting plate for the bridge of Les Paul-style guitars
• Securely attaches the connector housing to the strap pin of the instrument using the included bracket
• Connection: GK OUT jack: 1/4-inch TRS jack (for BGK cable only)
• Accessories: Mounting parts kit; User manual; Instruction sheet Notes
• Dimensions from case (W × D × H): 38 mm x 73 mm x 16 mm
• Weight of housing: 30 g
• Pickup dimensions (W × D × H): 103 mm x 8 mm x 9 mm
• Weight of pickup: 10 g

Specs:

• Pickup type: Other
• Pickup-Type: passive
• Strings: 6
• Color: Black
• Type: Pickups for electric Guitars
• Theme: Guitars and Basses
