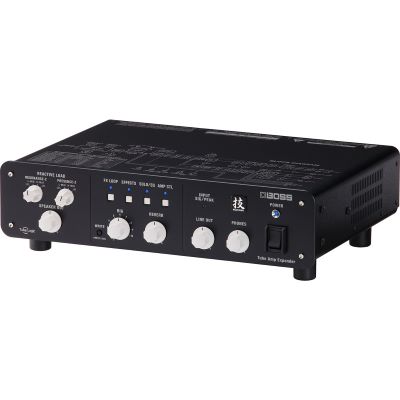

Boss Waza Tube Amp Expander

The Waza Tube Amp Expander combines for the first time a multitude of professional sound tools and offers a variable reactive loadbox, one active analog output stage, microphoned loudspeaker emulations, IR impulse responses and a recording interface in just one, easy-to-use device.

Features:

• Unique control center for tube amplifiers based on Waza technology and Tube Logic circuitry
• Modern, variable reactive attenuator circuit with discrete analog components for tube amplifiers up to 150 Watt
• Impedance settings to correctly adjust the load resistance of your amp, preserving the natural sound, dynamic feel, and individual character of the distortion
• up to 10 storable rig settings for individual setup favorites
• Deep real-time performance control via GA-FC/FS series footswitches and MIDI I/O
• Integrated 100 Watt Class AB amplifier with discrete analog design and seamless volume control
• Powerful DSP section with 32-bit AD/DA conversion, 32-bit floating-point calculation and 96 kHz sampling rate
• Adjustable stereo effects with professional sound quality: compressor, delay, reverb and four EQs
• 22 loudspeaker emulations with five selectable close-mic and three room microphone types plus four slots for uploading your own loudspeaker impulse responses

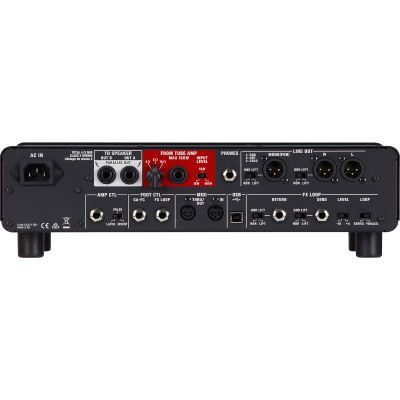

• External effect loop with selectable serial/parallel operation and control input for switching amplifier channels
• Parallel loudspeaker output for connecting two loudspeaker boxes for live use
• Balanced XLR line outputs (mono and L/R stereo) for connecting a FOH mixer, stage monitors and recording equipment
• Headphone output for quiet practicing with fully turned up amplifier sounds
• Editor software (Mac/Windows)
• USB for direct audio recording and communication with editor software

Specs:

• Channels: 10
• Effect Processor: yes
• Power: 100 W
• Amplification: Solid State
• Amp Type: E-Guitar Head
• Headphone Out: yes
• digital modelling: yes
• Type: Amps
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (2.77 MB)
