dB Technologies FL 15 Fifty Line

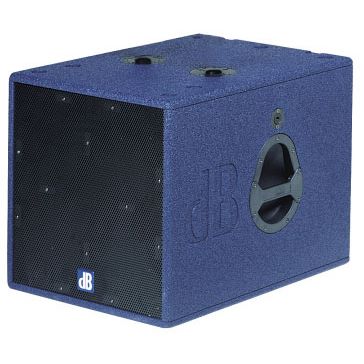

FL 15 MID-BASS Speaker

br/>
FL15 is the mid-bass range unit of the system.  The FL15 has both a 500Watt/RMS power amp, and a 300 + 100 Watt/RMS power amp, used to power the mid and high unit FL10 by using a 4-channel speaker cable. The combination FL10/FL15 is in fact already a complete full range PA system.

The 3 channel integrated power amplifier is electronically controlled and offers several professional features such as: Powercon connections with link out, 4 speed ventilator with an easy access filter system, a -3dB switch to link the FL10, and an independent full-wave limiter for each power amp channel. Additionally, an intelligent status LED is used to indicate failures such as low electrical power, limiter activities and so on.  The standard cut frequencies of the internal crossover are: 250 Hz and 1.8kHz.

In a full range situation, the 15" bass of the FL15 offers a frequency response of 52Hz to 250Hz in band pass design. In combination with the FL18 Sub bass unit, the FL15 is responsible for frequencies above 100Hz and gives a 132dB peak output.  The unit offers two 35mm flanges for the use of space bars, four M10 rigging points and nine align points on the top side for stacking the top unit, in face or with an angle.

Main Specs:

• 100+300+500W RMS

• 15" Bandpass-Woofer

• 53–250 Hz

• Max. SPL 132 dB

• crossover out at 250 Hz

• 2 x Neutrik Powercon

• 1 x Neutrik Speakon4-Out for Bi-Amping FL10

• 42 kg

• 500x500x650 mm
