dB Technologies VIO X15 Product Details

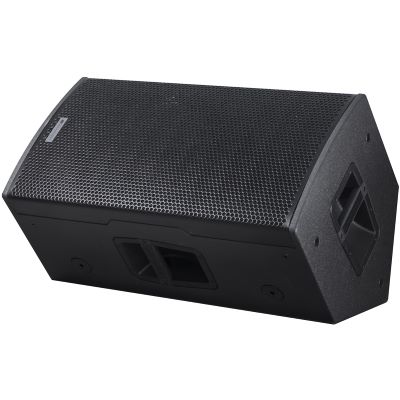

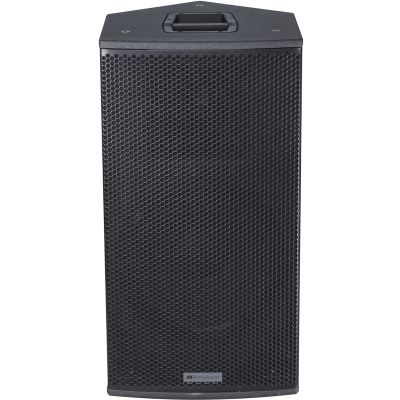

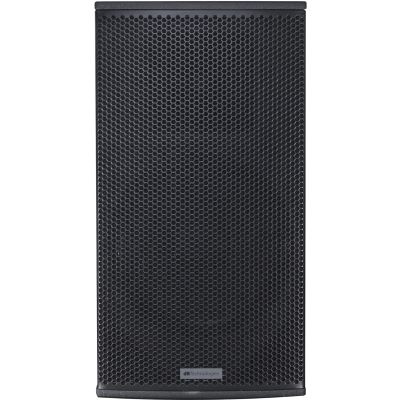

The dB Technologies VIO X15 is a speaker with active 2-way point source. The VIO X series features impressive performance, advanced DSP functions and full network capability via Aurora Net software.
The robust wooden housing allows the use as a monitor and is equipped with a 36mm stand flange and has mounting points, which allow a fixed installation with vertically and horizontally available wall brackets.

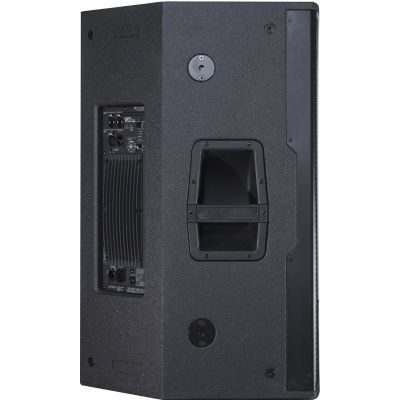

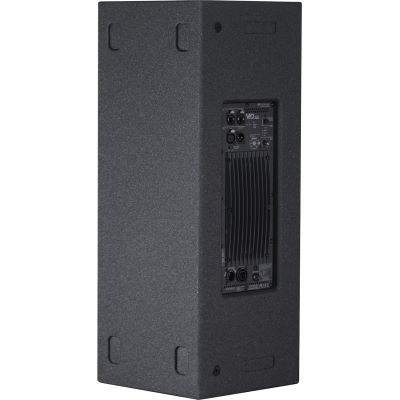

All VIO X speakers are powered by a Digipro G3 digital amp with 900 W RMS, providing outstanding sound pressure levels at a compact size and very low weight. Advanced sound processing with linear phase FIR filters enables VIO Xs to deliver coherent audio performance with speech intelligibility and clarity from any listening position.
On-board presets allow the adaptation of high-pass filters to the selected application and special EQ presets for wedge or full-range mode. VIO X is equipped with an RDNet port that allows real-time monitoring and full remote control via Aurora Net software (Windows and Mac).
Features:
- Speaker Type: 2 Way Active Loudspeaker
- Frequency Response [-10dB]: 55 - 22.000 Hz
- Frequency Response [-6dB]: 72 - 21.000 Hz
- Max SPL: 133.5 dB
- HF: 1 x1.4”, 3" Neodymium
- LF: 1x 15”, 3" Neodymium
- Directivity: 60° x 40°
- Horn: Rotatable Horn
- Amplifier: 900 W RMS Class-D Digipro® G3
- Cooling: Class-DConvection
- Power Supply: Auto-range SMPS
- Controller: DSP 28/56 bit
- AD/DA Converter: 24 bit/48 kHz
- Limiter: Peak, RMS, Thermal
- Processing: FIR Linear Phase Filters

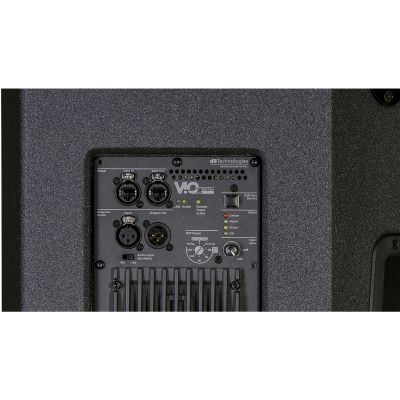

- Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet)
- Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
- Power Socket: 1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out
- Controles: 1x Rotary Encoder (8x EQ, HPF presets), 1x Input sensitivity potentiometer, 1x Mic / line switch
- Special Features: Opto-isolated floating pre-amp
- Housing: Wooden Cabinet, Polyurea painting

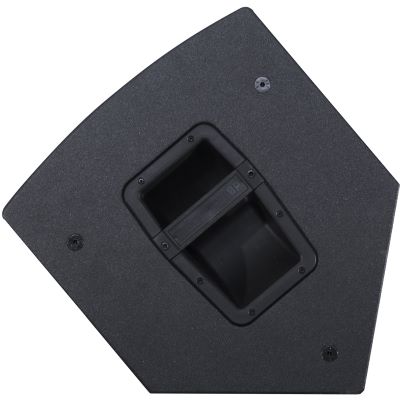

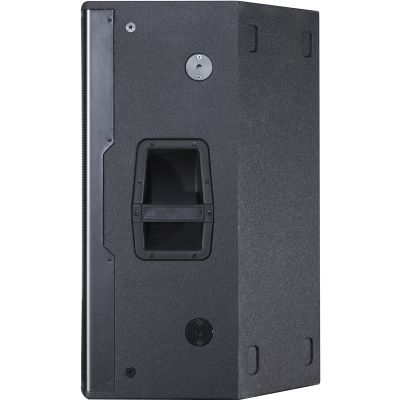

- Handles: 1x (top), 2x (side)
- Wedge Angle: Monitor Use 50°
- Rigging points: 12x M10 Thread + 4x Fast lock pins
- Pole Mount: Ø36 mm
- Width: 400 mm (15.74 in)
- Height: 750 mm (29.52 in)
- Depth: 475 mm (18.7 in)
- Weight: 25.4 kg (55.99 lbs)
Specs:
- Power: 900 W
- Housing Material: Wood
- Pole Mount: yes
- Airworthy: yes
- Woofer: 1 x 15
- Tweeter: 1 x 1,4
- Number of channels: 1
- Set Offer: no
- Bluetooth: No
- Type: Full Range Speaker
- Theme: PA and Sonication
