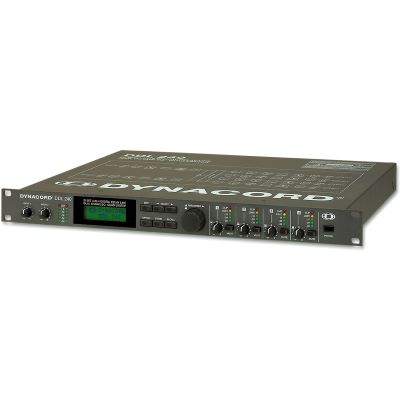

Dynacord DDL 240

Model: DDL 240

Professional Signal Delay Line, 2 x In / 2+2 x Out

The DDL240 is the perfect solution for multi-speaker system set-ups. Provided tools are: freely configurable delay lines, graphic EQ’s, parametric EQ’s and limiters.

Features

24-bit sigma-delta A/D-converter with 128- times oversampling

24-bit sigma-delta D/A-converter with 128-times oversampling

48 kHz sampling rate

5,400 msec max. delay time

21 µsec increment

Dynamic range > 115 dB

Frequency response 20 Hz - 20 kHz

Data format 24-bit linear AD/DA conversion, 48-bit processing

Freely configurable: e. g. in-2 stereo or in-4 mono

Operation and configuration via PC-software (Windows 95/98/NT/WIN2K)

PC-compatible operation and configuration software DDL 240 Editor

MIDI and RS-232 interfaces

RS-485 interface or switching contacts are optionally available

Signal processing: dual 10-band octave EQ per input, Low Cut/Hi Cut filters, 4 parametric EQ’s, limiters

All inputs and outputs are electronically balanced via XLR-type connectors, Input transformer balancing is optionally available

36 months warranty

Specs

Mains Voltage : 90 - 250 VAC / 50 - 60 Hz

Power Consumption : 20 W

Inputs : 2 x XLR IN, electronically balanced, transformer optional, 2 x XLR OUT (Direct Out)

Nominal Input Voltage : 1.55 V / + 6 dBu

Max. Input Voltage : 24.5 V / + 30 dBu

Input Impedance : 20 kohms

Common Mode Rejection : > 40 dB

A/D Conversion : 24-bit, Sigma-Delta, 128 times oversampling, linear phase

Outputs : 4 x XLR OUT, electronically balanced

Nominal Output Voltage : 1.55 V / + 6 dBu

Max. Output Voltage : 8.7 V / + 21 dBu

Output Impedance : < 100 ohms

Min. Load Impedance : 600 ohms

D/A Conversion : 24-bit, Sigma-Delta, 128 times oversampling

Frequency Response : 20 Hz - 20 kHz (± 0.5 dB)

S/N Ratio : 115 dB (typical)

THD without transformer : < 0.01 %

THD with transformer : < 0.05 %

Width : 483 mm

Height : 43.6 mm

Depth : 374 mm

Weight : 5 kg
