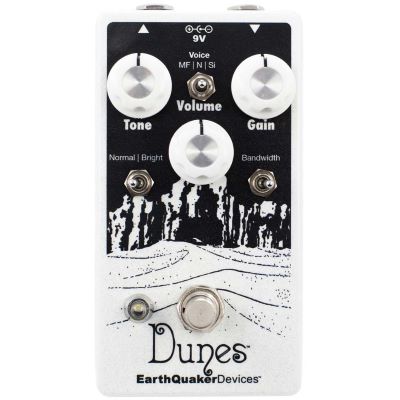

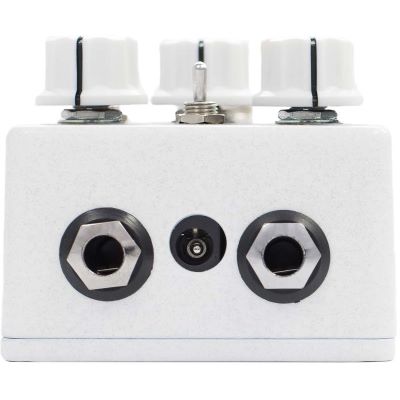

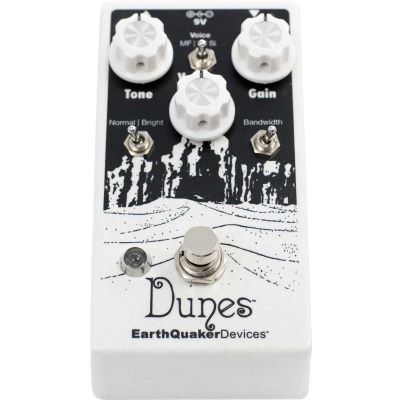

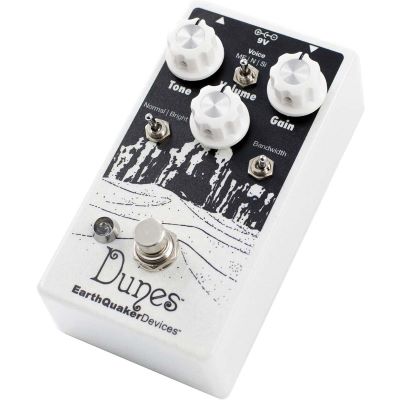

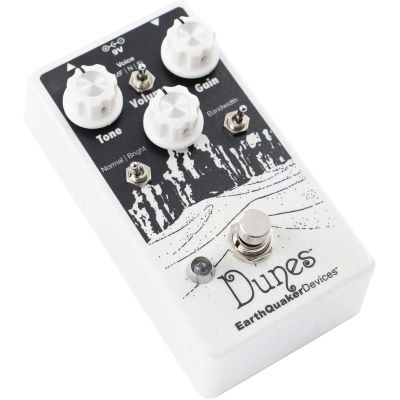

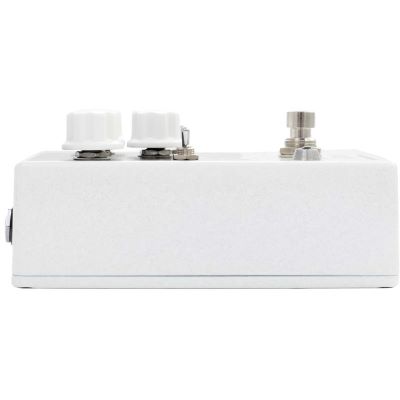

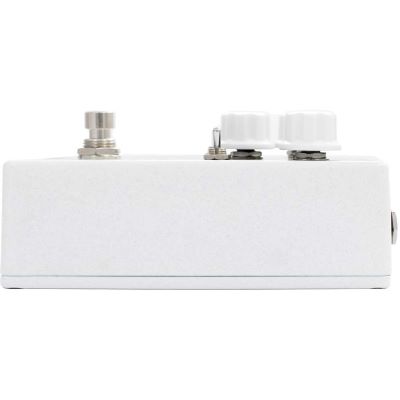

EarthQuaker Devices Dunes V2

The Dunes is a condensed version of our highly popular Palisades; a heavily featured take on the classic 808 overdrive. It features the same Gain, Tone and Level controls along with our favorite voice and bandwidth settings as well as the “Normal/Bright” toggle. The selectable voices are: “MOSFET” for a tight crunchy sound (Setting 3 on the Palisades), “Silicon” for the classic 808 sound (Setting 5 on the Palisades) and “None” which goes from clean boost to gritty, pure opamp distortion with a massive volume boost (Setting 1 on the Palisades). The two bandwidth settings are “stock” for the classic tone (Setting 3 on the Palisades) and “full range” for more low end (Setting 5 on the Palisades). The Dunes has all the great tone of the big boy Palisades but with a simplified interface and a smaller footprint!

Features:

• Controls:
  Gain: Adjusts the drive, dirtier clockwise, cleaner counter-clockwise
  Tone: Brighter clockwise, warmer counter-clockwise
  Level: Sets the output level
  Normal/bright: Normal is a warm full tone, bright is livelier tone with more chime
  Bandwidth: Left is brighter with more emphasis on the mids, right is full range for more low end
  Voice: MF-MOSFET diode clipping, N-No diode clipping, Si-Silicon diode clipping
• Measures: 4.625″ x 2.5″ x 2.25″ with knobs
• Standard 9 volt DC power supply with a 2.1mm negative center barrel. Current draw is 10 mA.

Specs:

• Color: Custom Graphic
• Effect Type: Overdrive
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (300.79 KB)
