Ecler DAC 110 E Audio Signalverteiler, sym. Eingänge

Units to be used in all kind of audio applications where it is required to attack some receivers with a single sound source, adapting its impedance and giving the possibility to choose different signal levels for each output.

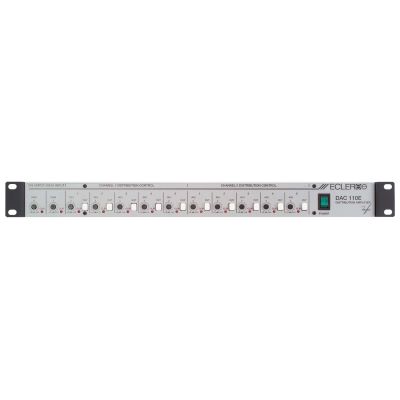

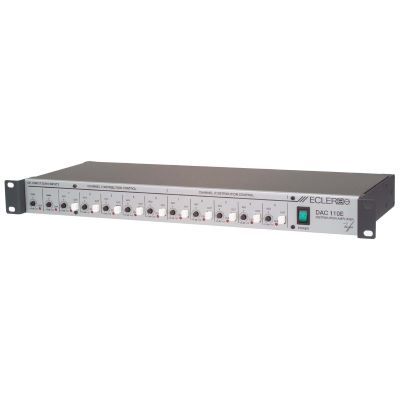

DAC 110 E

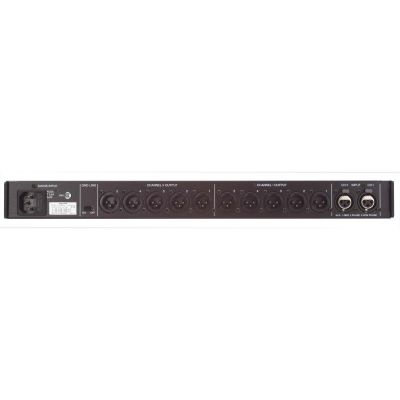

One mono input/10 mono outputs or one stereo input 5 stereo outputs. XLR-3 connectors.

Gain control (± 12 dB) and clip indicator in all the outputs and inputs. Cut switch in all the outputs.

All inputs and outputs are individually electronically balanced.

DAC110 E

Input level/impedance  0 dBV/47kO

Max. input level + 20 dB

Output level/minimum load 0 dBV / 600

Output impedance 75

Max. output level (with min. load) 20.2 dBV

Frequency response (-1 dB) 20 Hz - 95kHz

Harmonic distortion (1 kHz) < 0.005%

TIM 100 (0 dBV) < 0.003%

Noise 20 Hz - 20 kHz < -102 dB

CMRR @ 1 kHz > 60 dB

Gain margin ± 12 dB

CLIP indicator -3 dB real clip

LEAKAGE (@ 1 kHz) < -110 dB

Channel crosstalk @ 1 kHz < -80 dB

Power consumption 19.8 VA

Dimensions Panel (w x h) x d 482.6 x 44 x 182 mm

Weight 3.2 Kg
