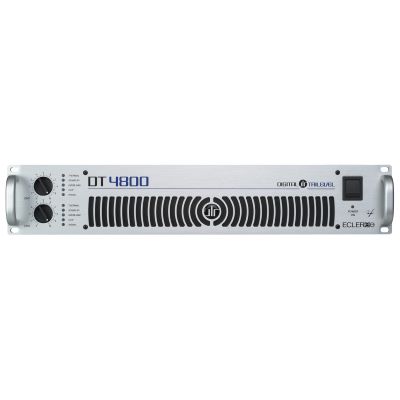

Ecler DT 4800

DT-4800  Main features

• First high performance “all the power all the time” amplifier

• 3320 W per channel on 2 Ohm (Model DT6800) in only 9,8 kg

• Resonant structure stabilized switch-mode power supply with PFC (Power Factor Correction)

• Trilevel Technology class BD digital amplification

• High End audio performance

• Low distortion, comparable to an analogue amplifier

• Temperature controlled progressive “Back to Front” cooling system takes air from the rear and throws it out at the front panel. Thermal management system

• Effective protection systems that do not affect audio quality with status indicators

• VCA-controlled autogain protection system (Analogue Autogain Signal Processor) and intelligent variable threshold anticlip protection that adapts to the incoming type of transient peak.

• Built-in subsonic filter.

• Robust, road tested. It has been certified to pass norm EN 60068-2-6:1995, level 5M3 as described on IEC 60721-3-5:1997(*)

• Tropicalized printed circuit boards, for use in salty or extremely humid environments

• Sealable gain controls.

• Nominal gain can be adjusted at the back panel with micro-switches (1V, 32 dB, 26 dB, 24 dB)

• Electronically balanced XLR-3 input connectors

• XLR-3 stack output connectors for interconnection with additional power amps.

• Complies with EMC (Electromagnetic Compatibility) regulations.

Instruction manual / Safety instructions:

• Manual (965.62 KB)
