Ecler eSAM402

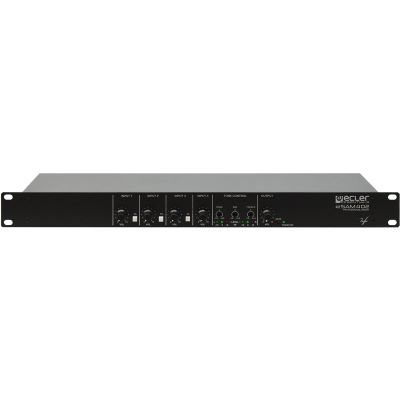

ECLER ESSENTIALS eSAM402 is an installation audio mixer in standard rack format with 3 MIC/LINE ST inputs, 1 LINE ST input, 1 Main Mix output and an AUX/REC auxiliary output. It has a 3-band tone control, a talkover function (priority) that can be assigned to each MIC/LINE input via the mix bus, a ST/MONO mix switch, and a MUTE connector for external dry contact triggering.

Features:

• Inputs:3 MIC / Stereo LINE + 1 ST LINE
• Outputs: 1 main stereo + 1 AUX/REC
• Remote control: MUTE contact (for external potential-free contact triggering)
• tone control: bass (100 Hz), mid (2 kHz), treble (10 kHz)
• dimensions: 482,6x44x120 mm
• Weight: 1,7 Kg
• 4 input channels, 2 outputs 19" mixer installation
• 3 MIC/LINE ST inputs
• 1 LINE ST input
• 1 main mix output and one additional AUX/REC output
• 3-band tone control
• Talkover function (priority) assignable from any MIC/LINE input via the mix
• Micro-sensitivity level adjustable on the rear panel
• 18V phantom power available for all MIC inputs

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (517.4 KB)
