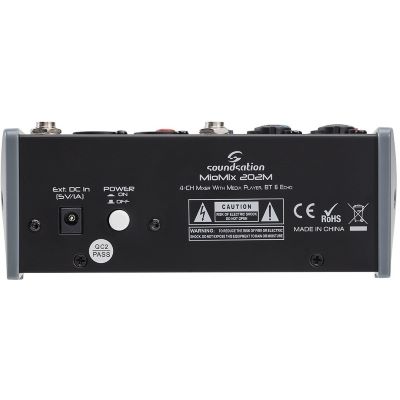

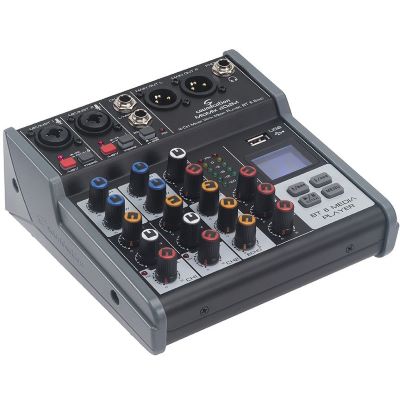

Soundsation MIOMIX 202M

The Soundsation MioMix 202M is a 4-channel mixer with USB player that is ideal for small home recording, live gigging and podcasting applications that require a professional level of quality and maximum portability. Two microphone inputs are equipped with noise-free preamps that accept all major sound sources, such as condenser microphones - thanks to +48V phantom power -, dynamic microphones, line and high-impedance inputs (guitars, basses, etc.). A stereo line input allows you to connect keyboards, CD players, DJ consoles, tablets or smartphones. The USB and BT player accepts audio files in WAV, MP3, WMA and FLAC formats, as well as wireless audio streaming (BT). It also records your gig in MP3 format (48kHz/16bit @ 128Kbps). The professional digital echo effect enriches your gig, as you can adjust the speed and the number of repetitions. An indispensable and reliable tool for all small audio applications.

Features:

• 2 mic/line channels with noise-free preamp, combo connector, Hi-Z input for guitars, +48V phantom power, peak meter.
• 1 stereo line channel with ¼" jack inputs, +4/-10dB pad adapter, and peak indicator
• USB media player and recorder (WAV, MP3, WMA, FLAC and BT wireless audio streaming)
• 2-band EQ for channels 1 and 2
• Digital echo effect with repeat, delay and level adjustment
• Media player output level control
• Headphone monitor output with level control
• XLR main outputs with master level control
• Stereo 6-Led VU meter bar
• Rugged and lightweight metal chassis for maximum flexibility and portability

Specifications:

• Inputs: balanced XLR/jack combination (channel 1-2), balanced ¼" jack (channel 3-4).
• Output: Balanced XLR connector (Main Out L-R), stereo ¼" jack (Phones)
• Channel 1-2 functions: +48V phantom power, impedance switch (Line/Hi-Z), 2-band EQ (80Hz/12kHz +/-15dB), effect send level, pan position, channel volume, peak led indicator
• Channel 3-4 functions: Impedance switch (+4/-10dB), 2-band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator.
• USB player buttons: up/back, down/forward, play/pause/enter, menu
• USB player functions: BT streaming, music player, audio recording, EQ curve selection
• USB drive format: FAT32 format - max 64GByte
• Player file formats: WAV, MP3, WMA, FLAC and audio streaming via BT
• Recorder file format: MP3 (48kHz/16bit @ 128Kbps)
• Effect functions: Echo repeat setting, echo delay time setting, echo level setting.
• Level meter: 2x6 LED display
• Maximum output level: 3 Vrms
• Frequency response: +/-0.5dB, 20Hz-20kHz
• Dynamic range: 102dB
• THD+N @ 1kHz: =0.003%
• Stereo Crosstalk: 92dB
• Power Requirements: DC 5V, 0.5A
• Power consumption: Max. 2.5W
• Size (WxDxH): 166 x 165 x 66 mm
• Net weight: 0.9 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication
