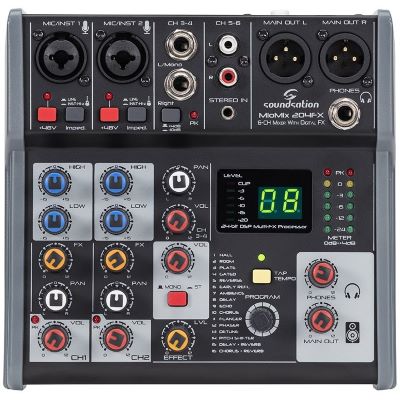

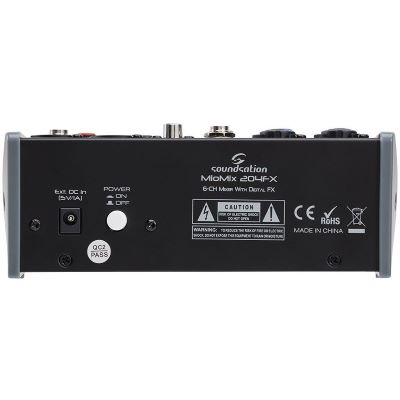

Soundsation MIOMIX 204FX

The Soundsation MioMix 204FX is a 6-channel mixer with digital multi-effects and is ideal for small home recording, live gigging and podcasting applications where professional quality levels and maximum portability are required. Two microphone inputs are equipped with noise-free preamps that accept all major sound sources such as condenser mics, dynamic mics, line and high-impedance inputs (guitars, basses, etc.). Keyboards, CD players, DJ consoles, tablets, smartphones, etc. can be connected to the stereo line inputs. Enhance your performance with the 24-bit/48 kHz digital effects with 16 commonly used presets (reverb/room/plate reverb, delay, echo, chorus, etc.) and TAP tempo function, and adjust up to two parameters of each effect.

Features:

• 2 Mic/Line channels with noise-free preamp, combo connector, Hi-Z input for guitars, +48V phantom power, peak meter.
• 1 stereo line channel with ¼" jack inputs, +4/-10dB pad adapter, and peak indicator
• 1 stereo line channel with RCA and 1/8" stereo mini jack inputs
• 2-band EQ for channels 1 and 2
• 24-bit/48kHz 16 preset digital effect with TAP tempo and up to 2 adjustable parameters
• Headphone monitor output with level control
• XLR main outputs with master level control
• Stereo 6-Led VU meter bar
• Rugged and lightweight metal chassis for maximum flexibility and portability

Specifications:

• Inputs: balanced XLR/jack combination (channel 1-2), balanced ¼" jack (channel 3-4), stereo RCA, stereo 1/8" minijack (channel 5-6)
• Output: balanced XLR connector (Main Out L-R), stereo ¼" jack (Phones)
• Channel 1-2 Functions: +48V phantom power, impedance switch (Line/Hi-Z), 2-band EQ (80Hz/12kHz +/-15dB), effect send level, pan position, channel volume, peak led indicator
• Channel 3-4 functions: Impedance switch (+4/-10dB), pan position, channel volume, peak led indicator.
• Channel 5-6 Functions: Channel volume, mono/stereo switch
• Digital effect: 24-bit sigma-delta, 256-fold oversampling, 48kHz sampling rate
• Level meter: 2x6 LED display
• Maximum output level: 3 Vrms
• Frequency response: +/-0.5dB, 20Hz-20kHz
• Dynamic range; 102dB
• THD+N @ 1kHz: =0.003%
• Stereo Crosstalk: 92dB
• Power Requirements: DC 5V, 0.5A
• Power consumption: Max. 2.5W
• Size (WxDxH): 166 x 165 x 66 mm
• Net weight 0.9 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (5.17 MB)
