Ecler Warm4 4-Kanal Rotary-DJ-Mixer

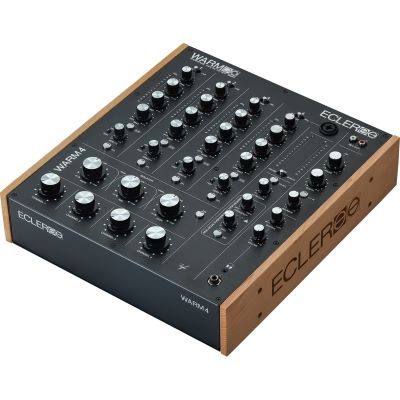

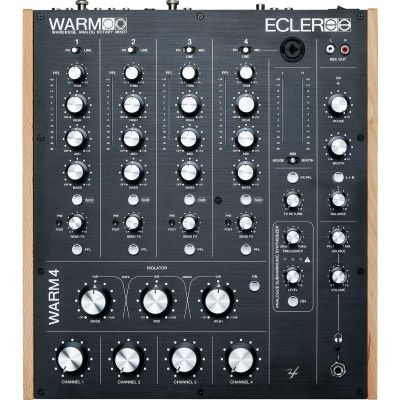

WARM4 is a professional four-channel analog DJ rotary mixer designed and manufactured by ECLER in Barcelona. It features 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order isolator. WARM4 has a unique feature, a per-channel selectable analog subharmonic synthesizer specifically designed to generate and amplify ultra-low frequencies.

Features:

• Ecler - Warm4 4-channel rotary DJ mixer.
• 4 mixing channels
• 4 PHONO inputs
• 4 LINE inputs
• 2 MICRO inputs

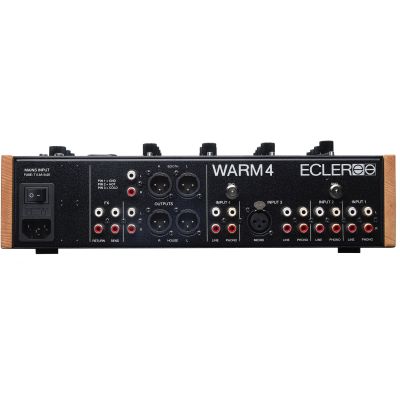

• Master output on XLR and RCA connectors
• Booth output on XLR and RCA connectors
• Headphone monitor output with 6.3 mm jack and 3.5 mm minijack connectors
• 3-band EQ with full cut
• 3-band isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct )
• Analog subharmonic synthesizer to boost subbass frequencies, selectable per channel
• Maximum output power without distortion: 21dBV (23dBu)
• FX send control and pre/post fader selector per channel
• FX return control and PFL
• High-quality Alps potentiometers with metal shafts
• Mechanized from a solid aluminum block, with no visible screws. Unique ecler design
• Wooden side panels included

Specs:

• Channels: 4
• Rack Mountable: no
• Effect Processor: no
• Talkover: no
• USB Port: no
• Line Inputs: 4
• Mic Inputs: 2
• Phono Inputs: 4
• Crossfader adjustable: no
• Color: Black
• Type: Mixer
• Theme: DJ Equipment

Instruction manual / Safety instructions:

• Manual (1.37 MB)
