Elgato Wave XLR B-Ware

Why B-Ware: Bad OVP.

Wave XLR combines multiple devices and offers features you won't find on normal audio interfaces: special clipguard technology against distortion, capacitive mute button and integration with customized Wave Link mixing software. With ultra-low noise amplification of up to 75 dB, you'll be heard loud and clear even with a notoriously insensitive microphone. 48 volt phantom power breathes life into condenser microphones and two on/off low-cut filters remove low frequencies at near and far mic positions. You can even swap out the front panel and knobs. Wave XLR - a compact USB interface that gives your mic superpowers.

Features:

• First-class XLR-to-USB-C connection

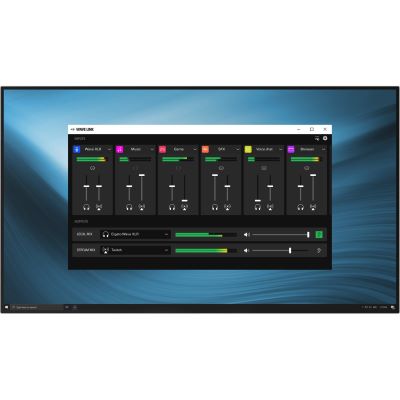

• Use the Wave Link app to mix your Wave XLR with multiple audio sources and create two independent mixes
• Special Clipguard technology prevents microphone distortion
• Ultra-low noise amplification of up to 75 dB for less sensitive microphones
• 48 V phantom power for the operation of condenser microphones
• Switchable low-cut filter removes low-frequency noise
• High-performance 3.5 mm headphone output for clear, latency-free monitoring
• Capacitive button mutes the microphone at the slightest touch
• Multifunctional rotary control for microphone gain, headphone volume and microphone/PC mix
• Front panel and control wheel are interchangeable for different designs

Technical data

• Frequency response: 20 Hz-20 kHz
• Dynamic range: 100 dB (120 dB with Clipguard)
• Equivalent input noise (ON): -130 dBV at 60 dB gain
• Gain range: 0-75 dB
• Phantom power: 48 VDC, 7 mA
• Maximum input level: 10 V at 0 dB gain (with Clipguard)
• Maximum output level: 77 mW
• Resolution: 24 bit
• Sample rate: 48/96 kHz
• Interface: USB-C
• System requirements: Windows 10 (64 bit), macOS 10.15 or newer, USB 3.0 or higher

Specs:

• Type: Audio Interface
• Color: Black
• Rack Mountable: no
• Line Inputs: 0
• Line Outputs: 0
• Mic Inputs: 1
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: USB
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Theme: Recording and Studio
