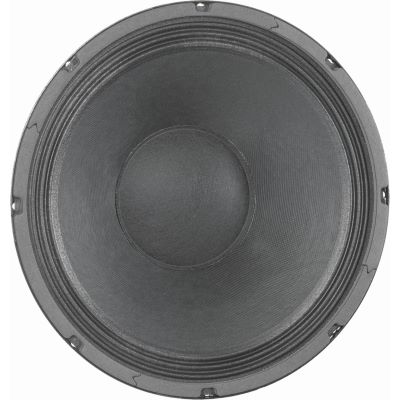

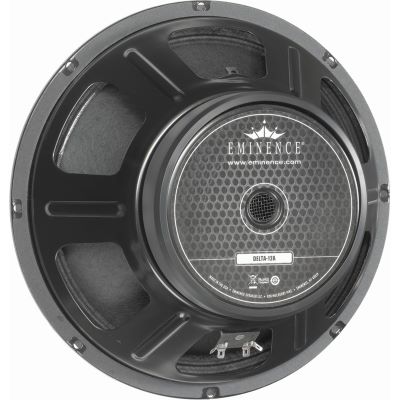

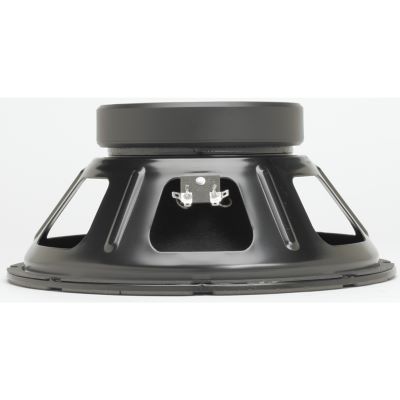

Eminence Delta 12B 12 Zoll 400W 16 Ohm

Eminence Delta 12B 12 Zoll 400W 16 Ohm Thumbnail 3

We are no longer offering this product.

You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.

Related Products
more of Eminence
all articles from the category 12 Inches Replacement Speakers

Brand:

Eminence

Model:

S153360

Shipping Weight:

6.10 kg

Shipped via:

Package

Unit:

piece

Secure Shopping:

Trusted Shops certified
Fast delivery times
1 month right of withdrawal
Buyer protection
Secure SSL data encryption

Share with friends:

Eminence Delta 12B 12 Zoll 400W 16 Ohm Product Details

Eminence Delta 12B 12'' 400W 16 Ohm

Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.

<>
Nominal Basket Diameter 12”, 304.8mm
Nominal Impedance* 16 ohms
Power Rating** 400W
Resonance 58Hz
Usable Frequency Range*** 65Hz-
Sensitivity 98.
Magnet Weight 56
Gap Height 0.375”,
Voice Coil Diameter 2.5”,

<>
Resonant Frequency (fs) 58Hz
DC Resistance (Re) 11.
Coil Inductance (Le) 0.
Mechanical Q (Qms) 7.
Electromagnetic Q (Qes) 0.
Total Q (Qts) 0.
Compliance Equivalent Volume 87 liters(Vas)
Peak Diaphragm Displacement Volume 140cc
Mechanical Compliance of Suspension 0.
BL Product (BL) 16.0
Diaphragm Mass inc. Airload (Mms) 32 grams
Efficiency Bandwidth Product (EBP) 112
Maximum Linear Excursion (Xmax) 2.7mm
Surface Area of Cone (Sd) 519.5
Maximum Mechanical Limit (Xlim) 9.0mm

<>
Recommended Enclosure Volume
Sealed 15.6-18.4
Vented 34-68 liters/1
Overall Diameter 12.03”,
Baffle Hole Diameter 10.95”,
Front Sealing Gasket fitted as
Rear Sealing Gasket fitted as
Mounting Holes Diameter 0.25”,
Mounting Holes B.C.D. 11.59”,
Depth 5.35”,
Net Weight 11.4 lbs
Shipping Weight 13.5 lbs

<>

Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.

<>
Nominal Basket Diameter 12”, 304.8mm
Nominal Impedance* 16 ohms
Power Rating** 400W
Resonance 58Hz
Usable Frequency Range*** 65Hz-
Sensitivity 98.
Magnet Weight 56
Gap Height 0.375”,
Voice Coil Diameter 2.5”,

<>
Resonant Frequency (fs) 58Hz
DC Resistance (Re) 11.4
Coil Inductance (Le) 0.77mh
Mechanical Q (Qms) 7.04
Electromagnetic Q (Qes) 0.52
Total Q (Qts) 0.48
Compliance Equivalent Volume 87 liters(Vas)
Peak Diaphragm Displacement Volume 140cc
Mechanical Compliance of Suspension 0.23mm/N
BL Product (BL) 16.0 T-M
Diaphragm Mass inc. Airload (Mms) 32 grams
Efficiency Bandwidth Product (EBP) 112
Maximum Linear Excursion (Xmax) 2.7mm
Surface Area of Cone (Sd) 519.5
Maximum Mechanical Limit (Xlim) 9.0mm

<>
Recommended Enclosure Volume
Sealed 15.6-18.4
Vented 34-68 liters/1
Overall Diameter 12.03”,
Baffle Hole Diameter 10.95”,
Front Sealing Gasket fitted as
Rear Sealing Gasket fitted as
Mounting Holes Diameter 0.25”,
Mounting Holes B.C.D. 11.59”,
Depth 5.35”,
Net Weight 11.4 lbs
Shipping Weight 13.5 lbs

<>
Copper voice coil
Polyimide former
Ferrite magnet
Vented core
Pressed steel basket
Paper Cone
Cloth cone edge
Solid composition felt dust cap
