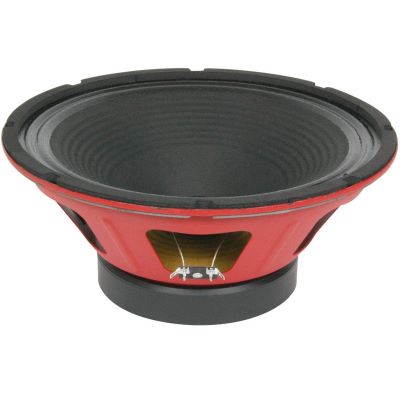

Eminence Governor 12 Zoll 75W 16 Ohm

Eminence Governor 12'' 75W 16 Ohm

THE GOVERNOR™ 16

gov'er nor n. a thick and raunchy British-voiced 12" guitar speaker with leading tonal characteristics

Coloration : Classic British tone. Thick and raunchy with lots of mids

Genre : Classic British Rock tone of the 60's and 70's


Specification
Nominal Basket Diameter 12", 304.8mm
Nominal Impedance* 16 ohms
Power Rating** 75W
Resonance 103Hz
Usable Frequency Range*** 70Hz-5.3kHz
Sensitivity 102
Magnet Weight 56 oz.
Gap Height 0.312", 7.92mm
Voice Coil Diameter 1.75", 44.5mm

Thiele & Small Parameters
Resonant Frequency (fs) 103Hz
DC Resistance (Re) 14.0
Coil Inductance (Le) 0.70mH
Mechanical Q (Qms) 12.51
Electromagnetic Q (Qes) 0.66
Total Q (Qts) 0.63
Compliance Equivalent Volume (Vas) 32.8 liters / 1.2 cu. ft.
Peak Diaphragm Displacement Volume (Vd) 64cc
Mechanical Compliance of Suspension (Cms) 0.09mm/N
BL Product (BL) 19.5 T-M
Diaphragm Mass inc. Airload (Mms) 28 grams
Efficiency Bandwidth Product (EBP) 157
Maximum Linear Excursion (Xmax) 1.2mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim)


Mounting Information
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Overall Diameter 12.02", 305.3mm
Baffle Hole Diameter 10.97", 278.6mm
Front Sealing Gasket fitted as
Rear Sealing Gasket fitted as
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.63", 295.4mm
Depth 5.2", 132mm
Net Weight 10.8 lbs., 4.9 kg
Shipping Weight 12.6 lbs., 5.7 kg

Materials of Construction
Copper voice coil
Nomex former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper Cone
Paper cone edge
Zurette dust cap
