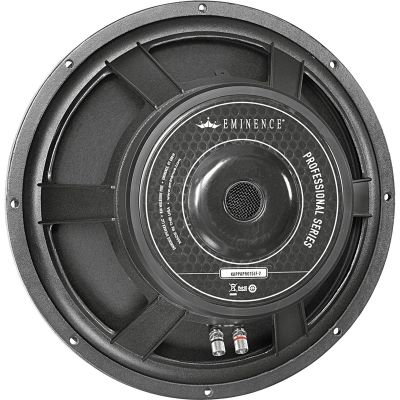

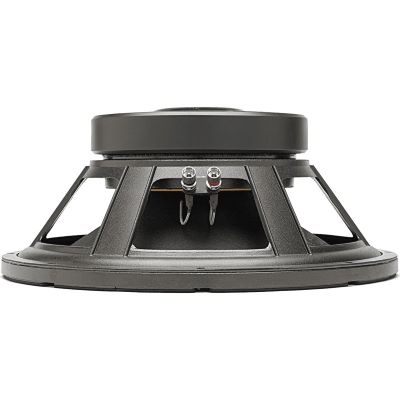

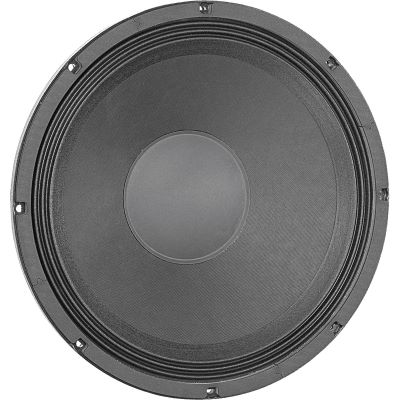

Eminence KAPPA PRO 15 LF-2

Eminence loudspeakers Footnotes

Eminence loudspeakers have been the world's first choice for professional audio and musical instrument applications since 1966, from setting the sound to rocking the sound. Eminence is dedicated to providing the best quality, value and service to meet your needs. Designed and hand-assembled in the USA, Eminence is the most trusted name in the industry. Find out why the world's leading brands and countless audio enthusiasts and musicians trust Eminence.

Eminence speaker frequency response curves are the average of multiple units measured at a nominal impedance of 1 W/1 m (e.g. 2.83 V/8Ω, 4 V/16Ω, etc.). All speakers were measured in a temperature controlled environment using the monthly calibrated LMS software. The supplied 0.25" microphone was mounted on axis at 1 m from the baffle. The baffle is flush with the anechoic wall and the speaker is mounted on the back against a thin steel ring to minimize diffraction. Measurements were taken with a Yamaha P3500S amplifier, calibrated monthly, and a 2700 cubic foot anechoic chamber with custom fiberglass surface treatment. Measurements below 200 Hz are tail-corrected to compensate for the volume of the chamber. Compression drivers were measured with a 2ft x 2ft baffle flush with the anechoic chamber wall and the horn was mounted in the front.

Features:

• Eminence - KAPPA PRO 15 LF-2
• Nominal basket diameter: 15", 381 mm
• Nominal impedance: 8 Ω
• Program power: 900 W
• Watt: 450 W
• Resonance: 44 Hz
• Usable frequency range: 40 Hz - 1.5 kHz
• Sensitivity: 98.4 dB
• Magnet weight: 11 oz.
• Gap height: 0.365", 9.3 mm
• Voice coil diameter: 3", 76 mm

Specs:

• Type: Replacement Part
• Theme: PA and Sonication
