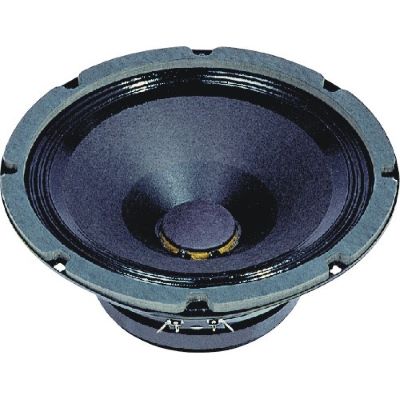

Eminence Legend 875

THE EMINENCE LEGEND 875 IS AN AFFORDABLE ALL PURPOSE 4 OHM 75 WATT SPEAKER

GREAT FOR PRACTICE AMPS, PORTABLE AMPS AND AS A GREAT REPLACEMENT IN SOME OF YOUR VINTAGE FAVORITES

WORKS NICELY IN A 4 x 8 CABINET FOR ACOUSTIC APPLICATIONS

Specifications



Nominal Basket Diameter  8" / 203.2mm

Impedance  4 ohms

RMS Power Rating  75 Watts

Usable Frequency Response 78Hz - 6kHz

Voice Coil Diameter 1.5" / 38.1mm

Sensitivity (1W/1m) 95dB

Magnet Weight 16 oz.

Shipping Weight  4.8lbs. / 2.2kg.

Mounting Information



Overall Diameter 8.24" / 209.2

Bolt Circle Diameter 7.75" / 196.9mm

Baffle Cutout Diameter 7.13" / 181mm

No. Of Mounting Holes 8

Mounting Hole Diameter 0.218" / 5.5mm

Overall Depth 3.58" / 91mm

Materials



Basket Pressed Steel

Voice Coil Polyamide-Imide Coated Copper

Dust Cap Solid Composition Paper

Cone Paper

Surround Paper Cone Edge

Magnet Ferrite

Thiele-Small Parameters



Resonant Frequency (fs) 88 Hz

Impedance (Re)  3.88 ohms

Coil Inductance (Le) 0.34mH

Electromagnetic Q (Qes) .70

Mechanical Q (Qms) 4.27

Total Q (Qts) .60

Compliance Equivalent Vol. (Vas) 18.7 Liters / .66cu.ft.

Voice Coil Overhang (Xmax) 1.3mm

Surface Area of Cone (Sd) .02141m2

BL Product (BL) 5.9 T-M

Displacement Volume (Vd) 27 cc

Diaphragm Mass Inc. Airload (Mms) 11 grams

Mechanical Compliance (Cms) .29mm/N

Mechanical Resistance (RMS) 1.47N*sec/M

Efficiency Bandwidth Product (EBP) 126

Impedance at Resonance (Zmax) 28 ohms
