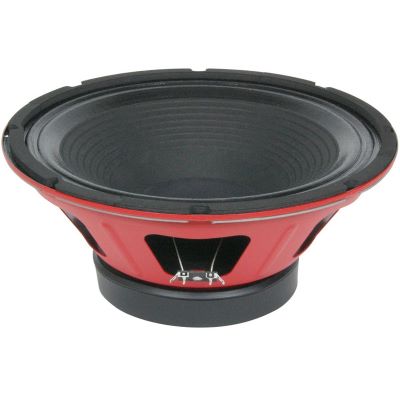

Eminence Red Ryder 12 Zoll 120W 8 Ohm

Eminence Red Ryder 12'' 120W 8 Ohm

red rid’er n. a red vehicle destined to take you quickly to the ultimate in BIG, British guitar tone

Coloration : Very fast, punchy and articulate. Good overall balance with big, tight bottom end and amazingly smooth
response to overdriven amps
Genre : Excellent articulation makes this speaker great for all genres


<>
Nominal Basket Diameter 12”, 304.8mm
Nominal Impedance* 8 ohms
Power Rating** 120W
Resonance 90Hz
Usable Frequency Range*** 70Hz-5kHz
Sensitivity 102
Magnet Weight 56 oz.
Gap Height 0.312”, 7.92mm
Voice Coil Diameter 1.75”, 44.5mm

<>
Resonant Frequency (fs) 90Hz
DC Resistance (Re) 6.91
Coil Inductance (Le) 0.45mH
Mechanical Q (Qms) 10.85
Electromagnetic Q (Qes) 0.57
Total Q (Qts) 0.54
Compliance Equivalent Volume (Vas) 36.6 liters / 1.3 cu. ft.
Peak Diaphragm Displacement Volume (Vd) 64cc
Mechanical Compliance of Suspension (Cms) 0.10mm/N
BL Product (BL) 14.9 T-M
Diaphragm Mass inc. Airload (Mms) 33 grams
Efficiency Bandwidth Product (EBP) 158
Maximum Linear Excursion (Xmax) 1.2mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim)


<>
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Overall Diameter 12.02”, 305.3mm
Baffle Hole Diameter 10.97”, 278.6mm
Front Sealing Gasket fitted as
Rear Sealing Gasket fitted as
Mounting Holes Diameter 0.25”, 6.4mm
Mounting Holes B.C.D. 11.63”, 295.4mm
Depth 5.2”, 132mm
Net Weight 10.8 lbs., 4.9 kg
Shipping Weight 12.5 lbs., 5.7 kg

<>
Copper voice coil
Polyimide former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper Cone
Paper cone edge
Zurette dust cap
