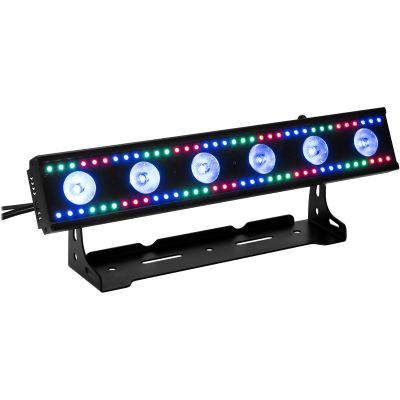

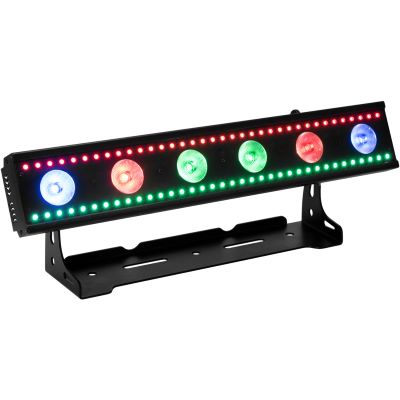

EUROLITE LED PIX-7 Hybrid SCL Leiste

The batten luminaire has six powerful 9 W LEDs and 72 additional 0.5 W LEDs for a wide range of applications. mood lights and black lights. Each of the 9 W LEDs can be controlled individually.

Features:

• 6 powerful 9W RGBA/CW/WW+UV LEDs (7in1) for wide mood light and black light
• 72 additional 0.5W RGB LEDs for dynamic chaser and strobe effects
• Auto, Music, Master/Slave and DMX mode
• Integrated show programs in auto and music mode
• Direct color selection for 27 colors
• 3, 7, 9, 22 or 43 DMX channels selectable
• Each 7in1 LED can be controlled individually
• Colour temperature 6-step adjustable from 2700-8000 K
• Music control via built-in microphone with adjustable microphone sensitivity
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom-powered USB jack for QuickDMX receiver (accessory)

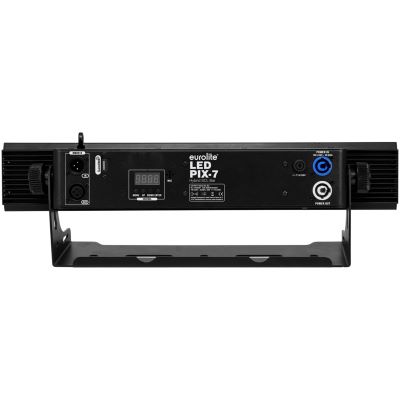

• Addressing and settings via control unit with 4-digit LED display

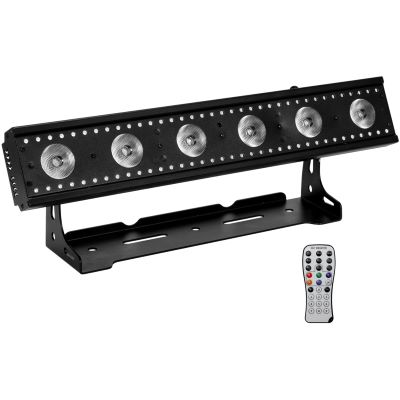

• Additional control option via EUROLITE IR-7 remote control, included in scope of delivery

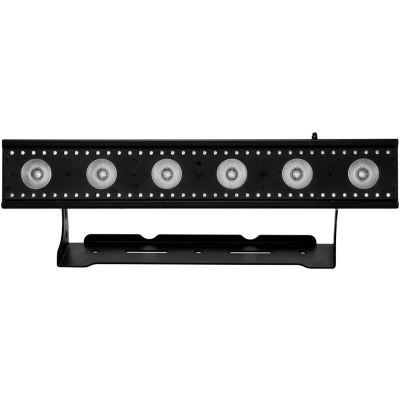

• Pivoting mounting bracket
• Loop-through output for power supply of up to 8 devices
• Mains connection via P-Con socket and enclosed mains cable with earthing contact plug
• LED: 72 x SMD 0,5 W 3in1 TCL RGB (homogeneous colour mixing)
• LED: 6 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogeneous colour mixing)
• Control: QuickDMX via USB (optional); IR remote control included; stand-alone; music control via microphone; DMX
• Projection: flicker-free
• Effect: Stroboscope effect; UV

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 50 W
• LED: 72 x SMD 0.5 W 3in1 TCL RGB (homogenous colour mixing), 6 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous colour mixing)
• Flash rate: 0 - 20 Hz
• DMX channels: 3; 7; 9; 22; 43
• Protection class: IP20
• Power connection: Power supply P-Con (blue), built-in version Power connection cable with earth contact (supplied)
• Current output: 1 x P-Con (grey), built-in version
• Fan:Without, because convection cooled
• Dimensions: L 50,00 x H 14,50 x D 10 cm
• weight: 3,95 kg
