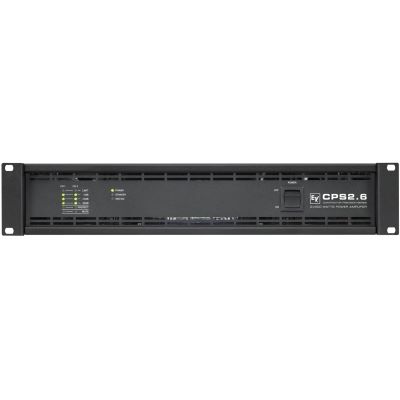

EV Electro Voice CPS2.6 MKII 230V

The CPS 2.6 MK II has a 2U housing, Phoenix connectors for inputs and outputs, pre-programmable switch-on delay, easy switch-on via remote contact locks, backplane attenuators and a switchable 50 Hz high-pass filter. Like the CPS multi-channel amplifiers, the CPS 2.6 MK II also has a module slot for the RCM-810 remote control module, which enables networking of system diagnostics and control via the IRIS-Net software.

Features:

• Up to 2 x 900 W at 2 Ohm
• Phoenix input and output connectors
• Remote on/off contact
• Rear attenuators
• Programmable time for user-defined switch-on delays
• Module slot for optional RCM-810 card, enables IRIS-Net control and monitoring
• Switchable 50 Hz high pass filter
• Three-stage fans from front to rear
• Class AB version
• Complete protection package

Specs:

• Color: Black
• Set Offer: no
• Channels: 2
• Fanless: no
• Bridge operation: yes
• Output power into 4 ohms: 600 W
• Output power into 8 ohms: 380 W
• digital power amplifier: no
• Type: Amps
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.88 MB)
