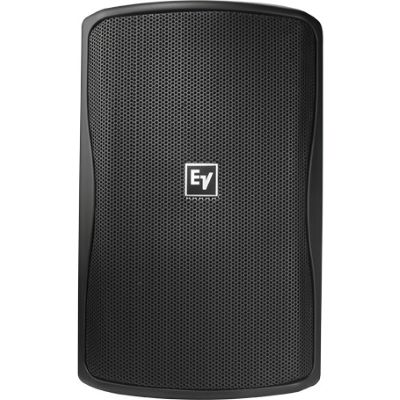

EV Electro Voice Zx1i-100t schwarz

The ZX1i is the installation version of the Electro-Voice ZX1 loudspeaker, which can be attached to any wall using a mounting bracket.The mounting can be vertical both horizontally - thanks to the rotatable horn. The ZX1i-100t / w can also be easily used outdoors because it has an impregnated woofer, a weatherproof housing and a terminated connection panel.

Features:

• Configuration: passive, 2-way
• Equipment: 8 '', 1 '' HT driver
• Power: RMS 200W / 8Ohm, Peak 400W
• Beam angle (HxV): 100 ° x 100 °
• Frequency response: 48Hz - 20kHz
• Impedance: 8 Ohm (nominal)
• Maximum sound pressure: 123dB
• Connections: Phoenix 4-pin terminals
• Tripod flange: No
• Flight assembly: wall mounting
• Housing: plastic
• Dimensions HxWxD: 451x 282x 263 mm
• Weight: 8.4 kg

Specs:

• Color: Black
• Set Offer: no
• Power: 200 W
• 100V - Technique: yes
• Woofer: 1 x 8
• Tweeter: 1 x 1
• Type: Wall-mounted Loudspeaker
• Theme: Installation

Instruction manual / Safety instructions:

• Manual (751.61 KB)
