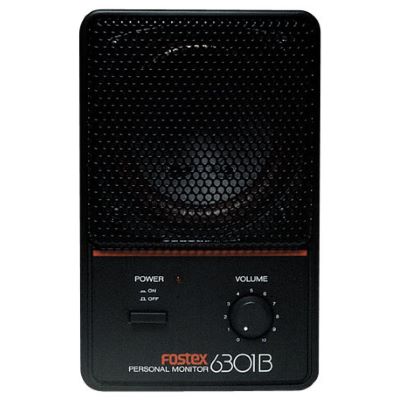

Fostex 6301BX Product Details
Features
Magnetically shielded type 10cm full range speaker
In-built 10W RMS power amplifier
(8 ohm load)
Power on/off switch
Rotary level control
EXT SP terminal
Automated protection circuit
Lightweight yet rugged enclosure
Compact size & high quality sound output
Optional 9610 Bracket (vertical / horizontal)
Specifications
Speaker 10cm full range
Freq. resp. 80Hz - 13kHz
Sensitivity 84dB/W @ 1m
(Max: 97dB)
Output level 10W (8 ohm)
Input imp >20k ohm (B) >10k ohm (HX)
Residual noise -70dBV (0.3mV)
Dimensions
119(W) x 188(H) x 123(D)mm
Weight 3kg
Detailed Specifications
SPEAKER SECTION
Speaker : Full range x1
Diameter : 100mm
Impedance : 4 ohm
Diaphragm : Cone, repulsion type
Repro. Frequency Response : 80Hz to 13kHz
Sound Pressure Level : 84dBW / 1m
AMPLIFIER SECTION
Output : 10W (8 ohm weighted)
Frequency Response : 20Hz to 50kHz (0dB, -3dB)
Total Harmonic Distortion : 0.05% (@ 1kW)
Input 6301B
Connector : 6mm dia phone jack x1
Input impedance : More than 20k ohm
Input Sensitivity : -4dBu (0.5Vr.m.s.)
6301BX
Connector : XLR-3-32 type (Pin 2:HOT) x1, 6mm dia phone jack x1
Input impedance
(XLR) : More than 10k ohm
(Phone) : More than 20k ohm
Input Sensitivity
(XLR) : +4dBu (1.2Vr.m.s.)
(Phone) : -4dBu (0.5Vr.m.s.)
Residual Noise Level : -70dBV (0.3mV)
GENERALS
Dimensions : 120(W) x 188(H) x 118(D)mm
Weight : Approx. 3.0kg
Power Requirement : 120V, 230V
Power Consumption : 30W
Specs:
- Type: Studio Monitor
- Theme: Recording and Studio
