GLP Ypoc 575 Color GLP incl. Leuchtmittel

YPOC Color 575 - the ultimate Washlight!

It is well designed with high quality components, many features, and is also equipped with a new micro-processor technology.

The electronic ballast reduce not only the weight. Also you get a flicker-free projection,

a longer lamplife and together with a glasreflector and a 150mm fresnel lens a very high lightoutput.

With its features like a new CMY color mixing system and the motorized zoom (8°-22°) as well as its noiseless, self-regulating fansystem it is useable for a wide range of lighting applications.

Technical Data

Source:

Lamp:                                      HTI 575/DE Osram

Average service life:                  500 h (750 h)

Color temperature:                       5600 k oder 7500  k

Luminous flux:43.000 lm

Electronic Ballast:

90-260 V/50-60 Hz  700 W



Weight and dimension:

Dimension:375 x 430 x 450 mm

Weight: 19 kg

Electromechanical effects:

Pan:540° 16bit (position feedback)

Tilt:280° 16bit (position feedback)

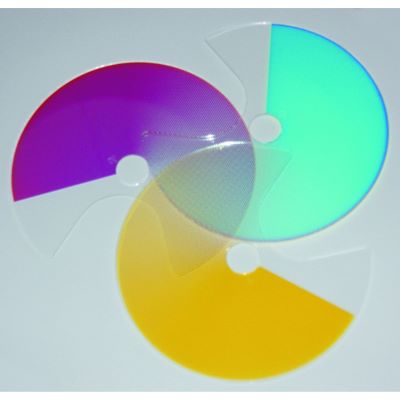

CMY color mixing system:cyan filter 0-100%

magenta filter 0-100%

yellow filter 0-100%

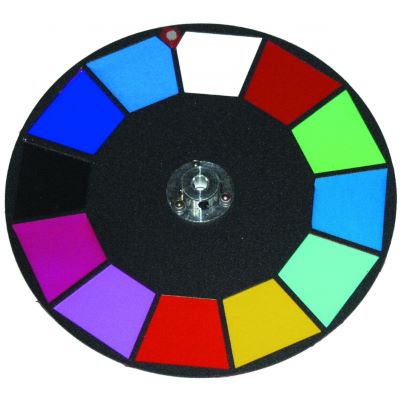

Colorwheel:9 dichroic colorfilter + 2 CTC-filters 3300k/5600k

+ white

slow rotation to fast rainboweffect

Effectwheel:beamshape 180° continuously variable

Frostfilter

Zoom:8°-22° motorized adjustable

Dimmer:mechanical dimmer 0-100%

Shutter:mechanical high-speed shutter 0-10Hz

Optical system:

Projection angle:8°-22° motorized adjustable

Fresnel lens:150mm diameter

Optics: glassreflector for high light output and

an even lightbeam

Control:

Protocol:USITT DMX 512

DMX-Channels:15

Musiccontrol:internal microphone, master-slave function,

colorchange and shutter control with music

Fancontrol:by DMX or automatic

Lamp on/off:by DMX or automatic

User board:



-Easy DMX address setting

-Operation hour meter

-Lamp hour meter

-Temperaturecontrol

-Testmode

-Audiomode

-Manual control of all functions

-DMX-Input value readout

Programming:

-Internal movements

-Separate speed for Pan/Tilt

-Random strobe

-pulse effect

-colorchaser

-Master-Slave function

-Audiomode with different zeroposition and different sizes

-When the DMX-signal is lost the audiomode will be switched on automatically if required (especially for clubs)

 Installation:

-4 x M 10 inserted nut to mount a clamp or half-coupler

-2 x omega-adapter with quick lock system to mount a clamp or half-coupler

-Any orientation

Power consumption:

-90-260 V/50-60 Hz 700 W
