Hafler M5 Product Details
5.25" Vented 2-way Professional Passive Monitor
The new M5 monitor is yet another example of Hafler’s brilliant loudspeaker design and manufacturing capabilities. The M-5 is an unparalleled solution for broadcast and project studio environments. Portable and lightweight, it offers all the qualities of the TRM6 in a more compact, non-amplified package.
Features
Frequency Response: 70Hz – 21kHz plus or minus 3dB.
TRM6 Tweeter/Waveguide: Smooth response on and off axis.
TRM6 Woofer Motor Assembly: Greater control of woofer at high output levels.
Shielded Woofer Magnet: Allows use near computer monitors.
Tweeter Level Control: User selectable front panel 3dB L-Pad.
Crossover: 4th order Linkwitz-Riley at 3.2kHz, Zobels, tweeter overload protection.
Versatile Inputs: 5-way binding posts.
M5 Specifications
Frequency Response 70Hz - 21kHz +/- 3dB
Power Handling 20 - 200 Watts
Nominal Impedance 6 Ohms
Total Harmonic Distortion (THD),
90dB @ 1 meter, on axis <3% 70-150Hz
<1% above 150Hz
High Frequency Driver 1" (25mm) silk dome/waveguide
Low Frequency Driver 5.25" (133mm) polypropylene/rolled nitrile rubber surround
Cabinet 5.3 liter, 4th order Butterworth vented, 5/8" MDF

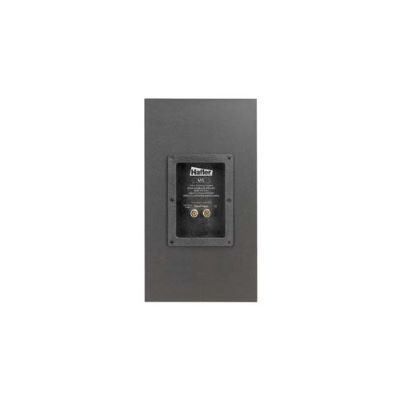

Inputs 5-Way gold plated binding posts
Dimensions 12.25"H x 6.75"W x 7"D
Net Weight 12 lbs. (5.45kg.) net
Crossover
Filter Type 4th order Linkwitz-Riley
Tweeter Overload Protection 3.2kHz Zobel network
