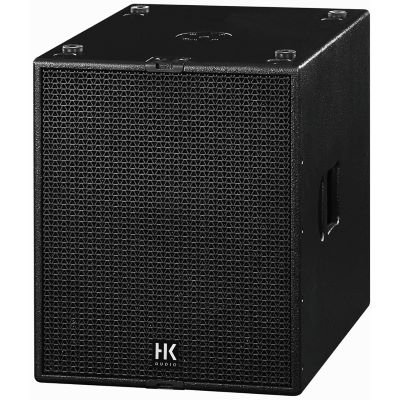

HK Audio Contour CT 118 Product Details
The HK-Audio CT 118 Sub is a direct-radiating bass reflex subwoofer designed for use in active sound reinforcement systems. It was developed specifically for deployment in combination with the HK-Audio ConTour Series cabinets CT 108, CT 112 and CT 115. Loaded with a neodymium woofer, the CT 118 Sub is extremely compact and lightweight. Delivering uniform bass response, it renders impulses with accuracy and authority even at peak loads. The CT 118 Sub is the perfect choice of bass bin for high-performance front-of-house systems and drum/side fills.
The HK-Audio CT 118 Sub can be retrofitted with an optional passive crossover. The passive crossover is equipped with true low-pass and high-pass filters for the sake of configuring basic satellite systems without having to resort to extra power amps or active crossovers. This makes it the ideal no-hassle option for enhancing lowend response.
For maximum performance, it is recommended that this enclosure be operated with an HK-Audio DSM 2060 Controller or an HK-Audio Digital Field Controller (DFC) in combination with a DFC network. Application scenarios: Low-frequency enhancement for setups entailing CT 108, CT 112 and CT 115 speakers.
Features:
- Power-handling nominal/program/Peak: 1000 W RMS / 2000 W / 4000 W
- Frequency range - 10 dB: 32 Hz-350 Hz
- Frequency response +/- 3 dB: 41 Hz- 350 Hz
- Sensitivity 1W/1m: 100 dB (50 Hz- 200 Hz)
- Maximum Sound pressure level calculated: 136 dB
- Maximum Sound pressure level peak: 131 dB
- Maximum Sound pressure level: 129 dB (50 Hz- 200 Hz)
- Nominal impedance: 8 ohms
- Low/mid woofer: 18"
- Recommended Crossover frequencies: 100 Hz/8th order Hardman LPF
- Recommended Crossover frequencies: Subsonic: 30 Hz/ 8th order Hardman HP
- Recommended controller: HK Audio DSM 2060
- Connectors: 2x Speakon NL 4
- Enclosure: 18 mm (3/4"), 13-ply birch plywood
- Finish: Black acrylic lacquer
- Grille: Metal grille with acoustic foam
- Handles: 2x Ergonomic handle
- Pole mount: M20 plate
- Weight: 42,5 kg/ 93.5 lbs.
- Dimensions (W x H x D): 50x 60x 68 cm
