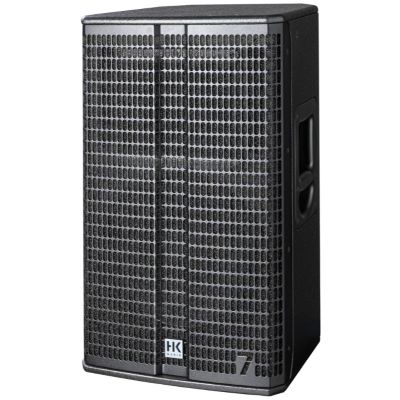

HK Audio Linear 7 112 FA

The active and network-compatible LINEAR 7 112 FA full-range loudspeaker delivers more sound pressure in the bass range thanks to its larger cabinet volume. With the "Bass Boost" preset optimized for the respective speaker, the bass range can be boosted as required.

Features:

• Max. SPL @ 10 % THD: 128 dB halfspace (70 Hz - 12 kHz averaged)
• Max. SPL peak @ 10 % THD: 131 dB halfspace
• Frequency response +/-3 dB: 64 Hz - 19 kHz
• Frequency response -10 dB: 55 Hz - 20 kHz
• Power amplifier output (peak power): 2000 W
• Power amplifier type: Class D - Biamped
• Woofer/midrange driver: 1x 12", 2.5" voice coil
• High-frequency driver: 1", 1.7" voice coil
• Horn characteristic: 70° x 50° CD horn, rotatable
• Crossover frequency active: 1.6 kHz FIR X-Over with 60 dB/oct.
• Maximum input level: +20 dBu

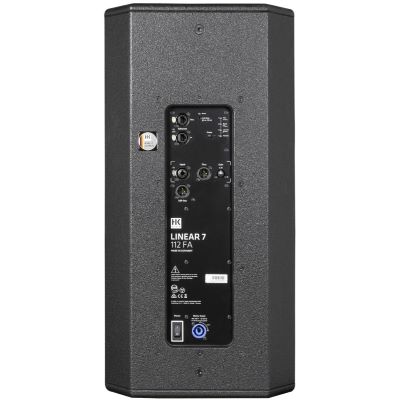

• Analog inputs: 1x XLR/jack combo balanced
• Analog Thru: 1x XLR balanced
• DSP Out: 1x XLR
• Network connection: Ethercon RJ45, 1x In, 1x Thru
• Filter presets: Flat, Boost, Low Cut, Remote
• Remote software: DSP CONTROL (Windows, Mac OS)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
• Sampling rate: 96 kHz
• System latency: Less than 2.6 ms
• Mains connection: 1x Powercon NAC3 In, 100-240 V
• Power consumption: 1 A / 100-240 V Nominal power consumption according to EN 62368-1
• Clustering angle: 70°

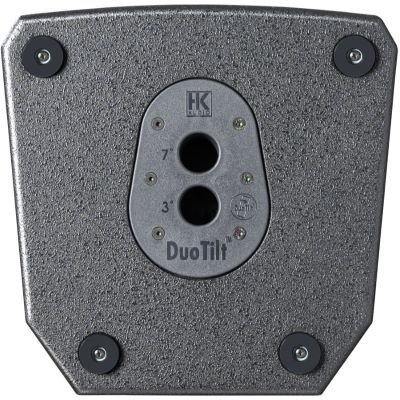

• Vertical stand flange: DuoTilt 3°/7°
• Flying points: 4x M8 (AP-8)

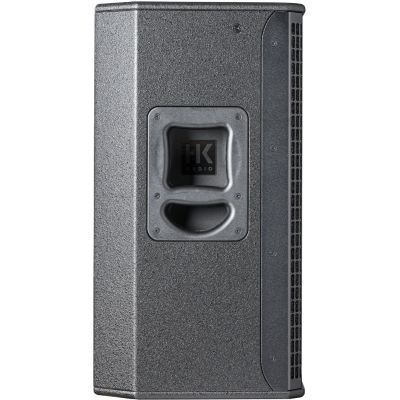

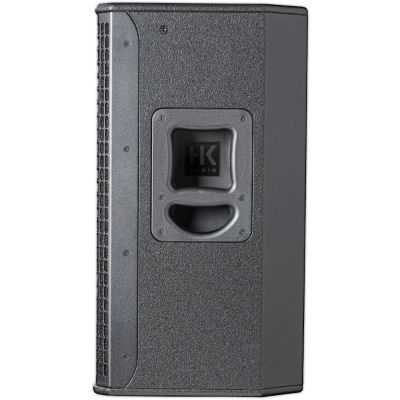

• Handles: 2x MultiGrip
• Body: Hybrid (birch multiplex/MDF)
• Housing surface: acrylic lacquer, black

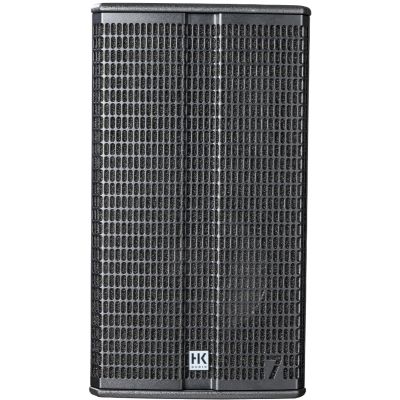

• Front grille: 2 mm metal grille with black acoustic foam
• Dimensions (WxHxD): 37 × 67 × 37 cm (14-9/16 x 26-3/8 x 14-9/16")
• Weight: 23 kg (50.7 lbs)

Specs:

• Power: 2000 W
• Housing Material: MDF
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 12
• Tweeter: 1 x 1
• Number of channels: 1
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication
