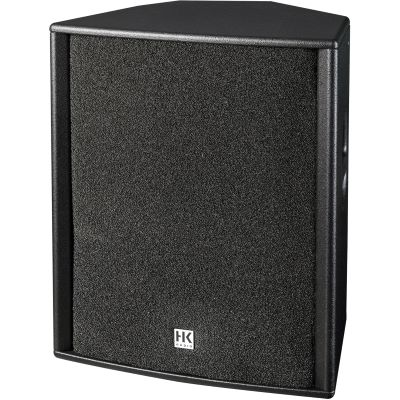

HK Audio Premium PR:O 15 XD

lattice lattice Compared to the PR: O 12 D, the 15 "speaker offers an extended low-mid and bass reproduction and is therefore particularly suitable for stand-alone use without an additional subwoofer Power electronics with 1,200 watts makes the PR: O 15 D a powerful sounding tool.

Features:

• Applications: as a full-range box or as a top in combination with the system basses PR: O 18 SUB A and PR: O 210 SUB A
• 1,200 Watt Class D Bi-Amping
• DSP with Plug "n" Play and without complicated menu structures
• Integrated control of the functions like EQ, X-Over, Limiter
• EQ Presets (Flat / Boost))
• Tone control to quickly adjust the sound characteristics (Music / Speech)
• FIR crossover
• Custom-designed speakers
• 90 ° x 55 ° CD horn for wide sound and best sound.
• Robust wooden case for a max. Sound pressure of 130 dB and a powerful bass
• Modular system for flexible applications (Fullrange, 2.1, Halfstack, Fullstack)
• M8 attachment points for easy installationMax SPL 125 dB Halfspace (@ 10% THD)

Technical Specificatons:

• Max SPL: 125 dB Halfspace (@ 10% THD)
• Max SPL peak: 130 dB Halfspace (@ 10% THD)
• Max SPL calculated: 133 dB Halfspace
• Frequency response: +/- 3 dB 60 Hz - 16 kHz
• Frequency response: -10 dB 54 Hz - 18 kHz
• Total power: 1200 watts
• Power Amplifiers: Class D - Biamped
• Active protection circuits: Peak and RMS sound limiter (separately for HF and LMF)
• Low / Mid-range speakers: 1x 15 "
• High-frequency driver: 1 "
• High-frequency horn: 90 ° x 55 ° CD horn • Isolation frequency active: 2.5 kHz FIR X-Over with 48 dB / oct.

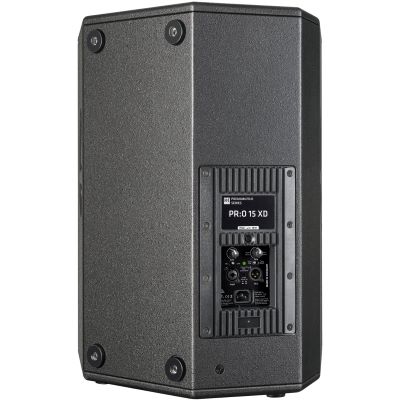

• Connections: 1x XLR / jack-combi In, balanced, 1x XLR-Through
• Sound control: Tone control (Music / Speech), Bass boost

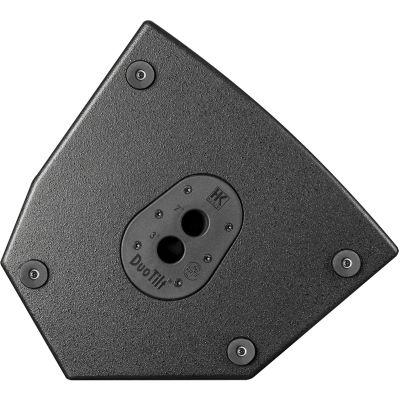

• High stand flange: DuoTilt 3/7
• Flight Points: 3x M8

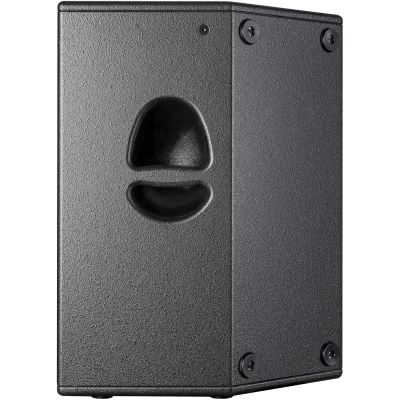

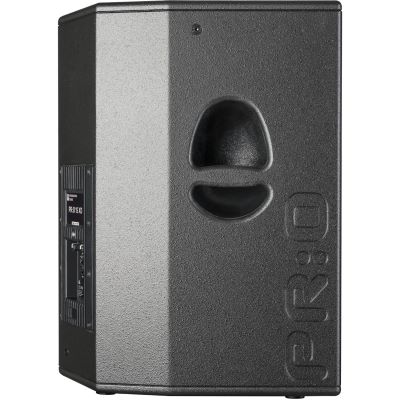

• Handles: 2, integrated
• Housing: MDF
• Front lattice: metal grille with black acoustic foam
• Surface: Acrylic lacquer, black
• Dimensions (WxHxD): 47 x 62.5 x 43 cm
• Weight: 23.7 kg / 52.3 lbs

Specs:

• Power: 1200 W
• Housing Material: MDF
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 15
• Tweeter: 1 x 1
• Number of channels: 1
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication
