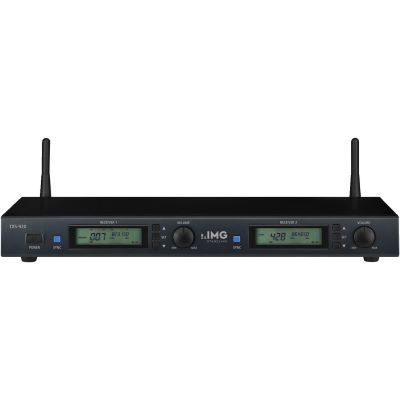

IMG Stage LineTXS-920

The IMG Stage LineTXS-920 is a 2-channel multi-frequency receiver unit in the frequency ranges 823-832 MHz and 863-865 MHz. The device has a sturdy metal housing and a supplied power supply.

Features:

• 2 licence-free frequency ranges (E band: 823-832 MHz and 863-865 MHz)
• 442 selectable channels
• Intermodulation-free presets, 4 groups with 8 channels each
• 12 intermodulation-free channels max. can be used in parallel (auto-scan)
• SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
• Auto-scan with intermodulation detection
• True diversity system with removable antennas (BNC connection)
• Pilot tone squelch
• Volume and squelch controls
• LCD for indicating group/channel, frequency, RF receiving level, AF audio level
• XLR output (bal.) and 6.3 mm output (unbal.) for each channel, switchable mic/line
• 6.3 mm output for mixed signal (line)
• Robust metal housing
• Supplied with power supply
• 482 mm (19") rack installation possible with supplied mounting brackets

Technical Specificatons:

• Type: receiver unit
• Carrier frequency range: 823-832 MHz + 863-865 MHz
• Audio frequency range: 80-18,000 Hz
• Channels: 2
• THD: < 1%
• Dynamic range: > 100 dB
• RF S/N ratio: > 100 dB
• Admiss. ambient temp.: 0-40 °C
• Audio signal receiver: line: 75 mV, mic: 7 mV (jack, unbal.); line: 150 mV, mic: 15 mV (XLR, bal.); 75 mV (mix)
• Power supply receiver: via encl. plug-in power supply
• Width receiver: 420 mm
• Height receiver: 42 mm
• Depth receiver: 183 mm
• Weight receiver: 2.3 kg
• Connections receiver: 2 x XLR, bal., 2 x 6.3 mm jack, unbal., 1 x 6.3 mm jack, unbal. (mix)

Specs:

• Color: Black
• Set Offer: no
• Frequency band: UHF
• Type: Receiver
• Theme: Microphones

Instruction manual / Safety instructions:

• Manual (981.81 KB)
