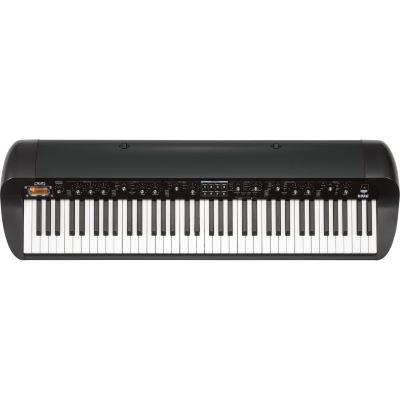

Korg SV-2 73 Stage Piano Vintage

The Korg SV-2 73 Stage Piano is a special specimen - the 73 hammer-action keys weighted according to a real specification make the large, heavy instrument with a focus on an analog feel a little more compact without losing too many octaves compared to the 88-note keyboard. with a focus on an analog feel a little more compact without losing too many octaves compared to the 88-note keyboard. The main focus of the entire SV series is on the very high-quality basic sounds, which can be refined with a variety of effects and given an analog flair thanks to the tube circuit at the end of the signal chain.

Features:

• 73 keys (E to E), RH3 (Real Weighted Hammer Action 3), velocity-sensitive
• Touch dynamics: 8 different curves
• Tuning: transposition, overall tuning, tuning curves
• Sound generation: EDS-X (Enhanced Definition Synthesis - eXpanded)
• Maximum polyphony: 128 notes
• Multisound: Layer, Split
• Factory sounds: 72 (6 basic sounds x 2 sets, 6 variations)
• EP1 (vintage): MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright
• EP2 (various): FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad
• Piano 1 (acoustic): German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japa-nese Bright, Austrian Grand, Austrian Classic, Japanese Upright, Upright Bright, German Upright, Rock Piano
• Piano 2 (various): Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass
• Clavinet: Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ
• Others: Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Piz-zicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/SynthLead
• Sound favorites: 64 (8 banks x 8 variations) for saving customized settings
• Effects: 6 (5 effects + 1 total effect)
• Equalizer: Bass, Mid, Treble
• Pre FX: Red comp, Treble boost, U-Vibe, Vibrato, Tremolo, VOX Wah (auto or pedal control)
• Amplifier models: Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor technology - 12AX7 (ECC83) tube
• Modulation: Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)
• Ambient: Room, Plate, Reverb, Spring, Tape Echo, Stereo Delay (Tap tempo)
• General effects (editable with SV-2 Editor): Stereo mastering limiter, stereo limiter
• Sound selection: TYPE knob, VARIATION knob, FAVORITES 1 - 8 buttons
• Favorite sound selection: 1 - 8 buttons, SOUND TYPE knob
• Effect control: Equalizer: On/Off button, BASS knob, MID knob, TREBLE knob
• Pre FX: On/Off button, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL button (available when TYPE = Vox Wah)
• Amplifier: On/Off button, TYPE knob, DRIVE knob
• Modulation: On/Off button, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast button (available when TYPE = Rotary)
• Ambient: On/Off button, TYPE knob, DEPTH knob, Tap (available if TYPE = Stereo Delay)
• Volume: Master Volume
• Switches: Transpose, Local Off, Touch, Function
• Demo Songs: 72 (one song for each preset sound)

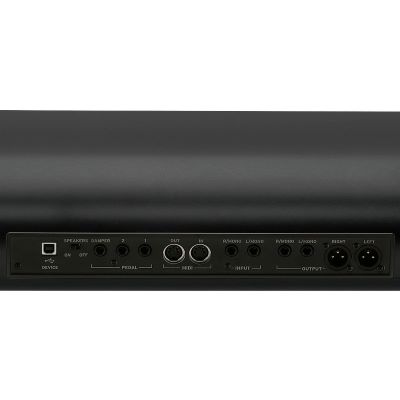

• Audio output: L/R jacks (XLR balanced), L/MONO jack, R MONO jack (6.3 mm unbalanced), 6.3 mm stereo headphone jack
• Audio input: L/MONO socket, R/MONO socket (6.3 mm unbalanced)
• MIDI: IN socket, OUT socket
• USB: 2.0 type B connector (also functions as MIDI interface)
• Damper pedal: KORG DS-2H (included)
• Headphones: headphone jack（6.35 stereo jack)
• Power supply: Internal switching power supply, AC 100~240 V, 50/60 Hz
• Dimensions (W x D x H, without music stand): 1,143 mm x 347 mm x 157 mm
• Weight (without music stand): 17.2 kg / 18.3 kg (S)
• Scope of delivery: mains cable, music stand, DS-2H damper pedal, quick start guide

Specs:

• Color: Black
• Number of Keys: 73
• Keyboard: fully weighted
• Polyphony: 128
• Number of split zones: 3
• Number of Sounds: 72
• Number of pedals: 1
• Effect Processor: yes
• Recording Function: no
• Auto Accompaniment: no
• MIDI Port: yes
• Set Offer: no
• Type: Stage Piano
• Theme: Keyboard Instruments
