LD Systems Dave 12 G3 SUB

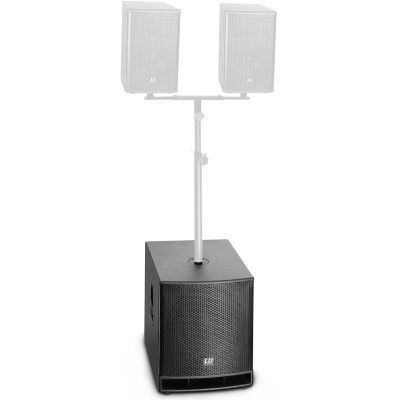

The new LD Systems DAVE 12 G3 is the perfect active PA system for high-powered live gigs, multimedia presentations, and permanent installations in bars and clubs. A 12" bass reflex subwoofer and the satellites with 6.5" drivers and HF horns ensure a good sound with driving, defined bass, natural mids, and clear treble. The 2.1 power amp stage is built into the subwoofer and provides the system components with 2000 W Peak power.

The soul of the DAVE 12 G3 is the LD LECC DSP digital signal processor, which controls all important system functions. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

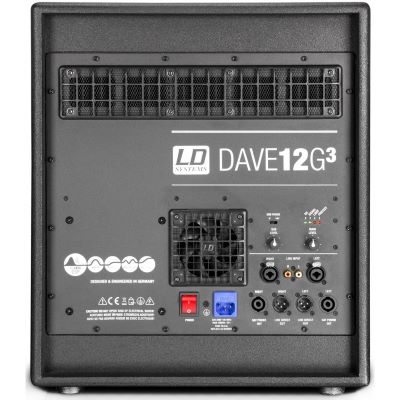

The professional full range of features of the DAVE 12 G3 includes sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are an important innovation with a metal ring handle that permits a secure and convenient grip from all sides. For accurate vertical orientation of the satellites, the speaker supports are vertically adjustable by ± 13,5° max. in seven increments.

Protection covers for the system components and a castor board with a lashing strap for easy transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

The DAVE 12 G3 system is ideally suited for portable use and also makes a great impression in permanent installations.

Features:

• Product type: PA Complete Systems
• Colour: black
• Max. SPL (continuous): 119 dB
• Max. SPL (peak): 130 dB
• Frequency response: 40 - 19000 Hz
• Dispersion (H x V): 90 x 40 °
• Weight: 48,5 kg

Technical Specificatons:

• Low/mid driver dimensions: 12 "
• Woofer Size: 304.8 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 2.5 "
• Woofer voice coil (mm): 63.5 mm
• Cabinet construction: vented
• Cabinet material: 15 mm Plywood
• Cabinet surface: texture paint
• Subwoofer width: 435 mm
• Subwoofer height: 500 mm
• Depth Subwoofer: 540 mm
• Subwoofer features: LD Systems "Evolutive" handles , threaded flange M20

Specs:

• Power: 540 W
• Housing Material: MDF
• Pole Mount: yes
• Woofer: 1 x 12
• Set Offer: no
• Type: Subwoofer
• Theme: PA and Sonication
