LD Systems LD VUE 18 Bandpass Subwoofer passiv Product Details

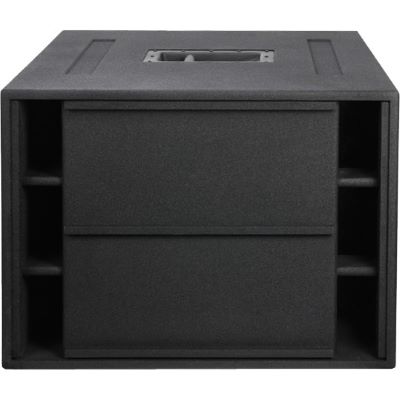

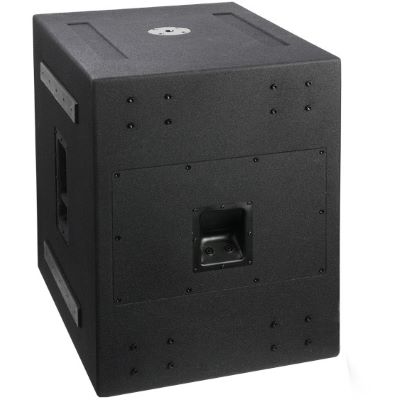

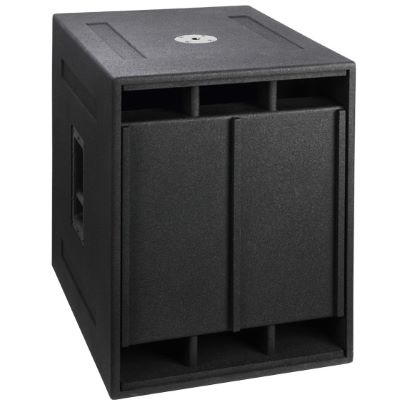

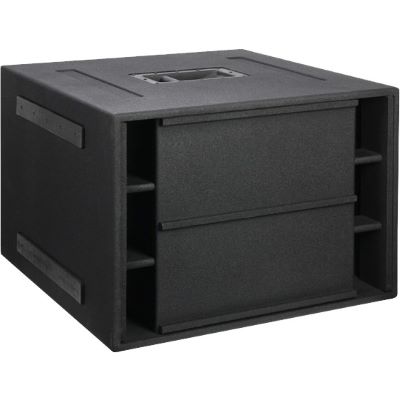

The LDV118B is an extremely powerful, versatile passive subwoofer. The especially compact bass-reflex design made of 18mm birch plywood is loaded with a specially developed 18" custom bass driver with a powerful ferrite magnet and a 4" voice coil. The LDV118B has a rated load of 800W continuous power. It delivers massive, precisely defined bass reproduction with high impulse fidelity down to 36Hz and attains a maximum sound level pressure of 127dB.
The cabinet is covered with a water-resistant Dura-Coat LX finish and is prepared for mounting of casters. It has a recessed M20 threaded flange for speaker poles. Neutrik Speakon sockets serve as inputs and outputs and sturdy steel handles facilitate transport.
Features:
- Type: Bandpass Subwoofer
- Woofer: 18” with 4” voice coil
- Power Capacity (Cont./Peak): 800 W / 1600 W
- Frequency Range: 36 Hz - 120 Hz
- SPL 1 W / 1 m: -
- Max SPL: 127 dB
- Impedance: 8 Ohms
- Connectors (In / Out): 2 x Neutrik NL-4
- Cabinet Material: 18 mm Birch Plywood
- Cabinet Surface: Dura-Coat LX Textured Finish
- Dimensions (W x H x D): 762 × 552 × 750 mm
- Features: Heavy duty steel handles, Threaded flange (M20), Prepared for Transport Wheels
Specs:
- Type: Subwoofer
- Theme: PA and Sonication
