LD Systems Stinger SUB 12 A G2 Product Details
LD Systems Stinger Sub 12A G2 Powered Subwoofer
The Stinger Sub 12A G2 is a powered subwoofer for universal use with speakers made by LD Systems and other manufacturers.

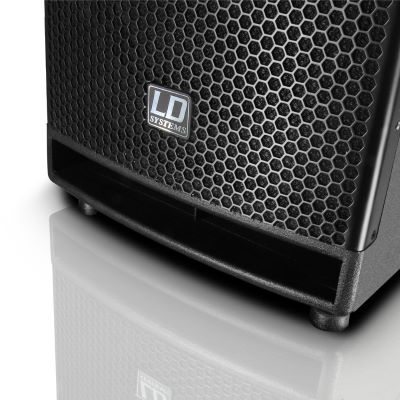

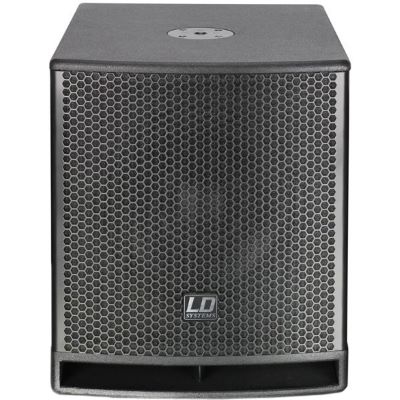

The compact bass-reflex cabinet made of sturdy multiplex houses a Class AB power amp with a full 250W (RMS) of output that drives a 12” high-performance subwoofer with a 3” voice coil. It provides for deep bass response down to 38Hz with outstanding dynamics and impulse fidelity and a maximum sound pressure level of 120dB (128dB peak).

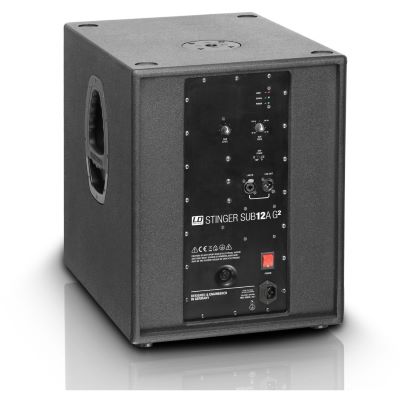

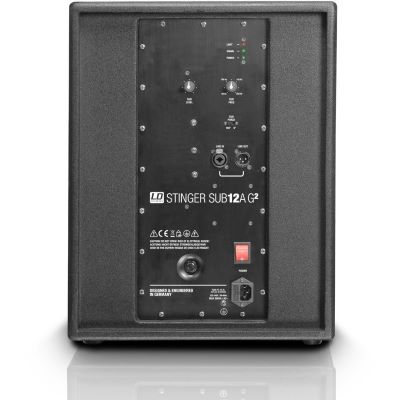

For precise system integration, the Stinger Sub 12A G2 is equipped with volume and low-pass (80 to 200Hz) controls as well phase reverse. It has an XLR/jack combo input connector and an XLR direct output for parallel operation of active subwoofers. Of course, it also incorporates extensive protective circuitry for safe continuous operation.
Additional features include an M20 stand mount and the innovative LD “Evolutive Handles”. These ergonomic carrying handles permit a secure grip from all sides and convenient transport. A transport bag and a dolly are available as accessories.
Features:
- Woofer size: 12"
- Woofer magnet: Ferrit
- Woofer brand: Custom made
- Woofer voice coil: 3"
- Amplification: Class A/B
- Rated system power (RMS / peak): 250 W / 500 W
- Frequency range: 38 Hz - 200 Hz
- Max. SPL (continuous): 120 dB
- Protection: short circuit, over-current, continuous current, limiter
- Input sensitivity: 0,3 V RMS
- Controls: Sub level, sub phase, sub freq (adjustable low-pass filter)
- Indicators: Protect, power
- Line inputs: 2 x XLR/jack combo
- Line outputs: 1 x XLR direct output
- Power supply: Transformer
- Operating power: 220 V AC - 240 V AC
- Cabinet material: 15 mm plywood
- Cabinet Surface: Textured paint
- Dimensions (W x H x D): 390 x 500 x 540 mm
- Weight: 25,5 kg
- Features: LD SYSTEMS Evolutive handles, threaded flange (M20)
Specs:
- Power: 250 W
- Housing Material: MDF
- Pole Mount: yes
- Woofer: 1 x 12
- Type: Subwoofer
- Theme: PA and Sonication
