LD Systems U508 BPW - Funksystem + Bodypack + Blasinstrument Mikro Product Details
No matter what instrument you play, with the U500® series you get professional sound for an affordable price, amazing performance and reliability. Because with the same passion that you want to inspire your audience on stage we want to inspire you with our U500® series.
With selectable transmit power up to 30 mW, the U500® instrument sets reach over 100 meters in free field. They are available for 584 - 608 Mhz and 655 - 679 MHz radio frequency bands. bands, in each of which you can operate 12 systems simultaneously. In the 823 - 832 MHz and 863 - 865 MHz ranges, six systems can be used simultaneously. Gain control provides up to 27 dB of attenuation for a distortion-free audio signal. distortion-free audio signal for perfect matching to active and passive guitars and basses or wind instruments with high sound pressure levels. Even the lowest bass tones are transmitted precisely thanks to the frequency response frequency response down to 30 Hz. The receiver's output impedance and level can be switched for direct connection to guitar and bass amplifiers. amplifiers.
The U500® True Diversity UHF wireless systems simplify setup by featuring an automatic search function that finds the best available frequency. They also feature the intuitiveOne-Touch infrared synchronization of transmitter and receiver. High-contrast OLED displays provide an optimal function overview with displays of group, channel, radio frequency, signal strength and battery status. battery status, and individual user names can be entered. In addition to the squelch function, an inaudible pilot tone of the bodypack ensures interference-free operation. It protects against interference and mutes the receiver if a radio signal without this tone is present. The effective U500® technology with high quality components achieves a precise, distortion-free transmission without latency or artifacts. Low power consumption provides up to 10 hours of transmitter runtime on two AA batteries.
The U500® series instrument sets are available in two versions: for wind instruments with a clip-on microphone or for guitars and basses with a low-capacitance cable that is double-shielded against interference.
Features:
- Part Number: LDU508BPW
- Product type: Wireless microphone systems
- Type: True Diversity
- Radio frequency range: 863 - 865MHz, 823 - 832MHz
- Weight: 2.46kg, 0.99kg

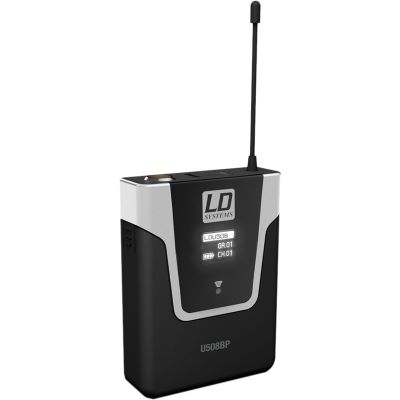

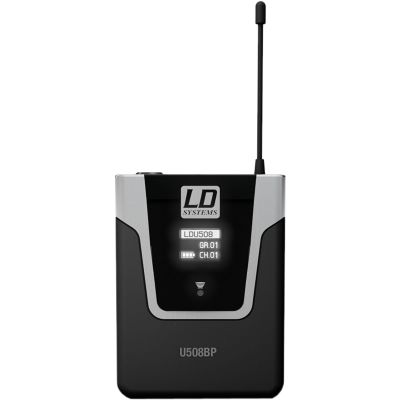

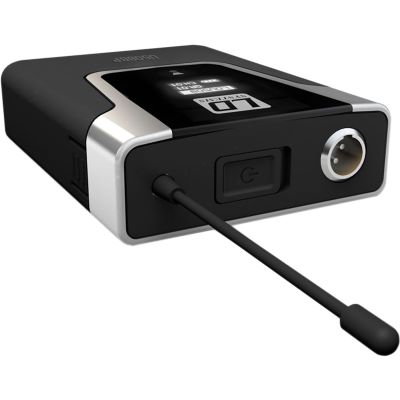

LDU508BP - Bodypack Transmitter
- Product type: Wireless microphone system accessories
- Type: Bodypack
- Radio frequency range: 823 - 832MHz, 863 - 865MHz
- Channels: 96 (8 groups of 12 channels)
- Groups: 8
- Inputs: Mini-XLR (3-pin)
- Frequency response: 30 - 16000Hz
- Signal to noise ratio: >90dB
- RF output power: Variable (2mW, 10mW, 30mW)
- Controls: Arrow keys (value input, up/down), Power On/Off, Select
- Display elements: OLED display
- Power supply: 2 x AA battery
- Operating time: >10 hours (with alkaline batteries)
- Width: 65mm
- Height: 86mm
- Depth: 23mm
- Weight: 0.09kg
- Other features: switchable gain, detachable antenna, IR frequency synchronization, pilot tone detection/adjustable squelch, switchable RF power

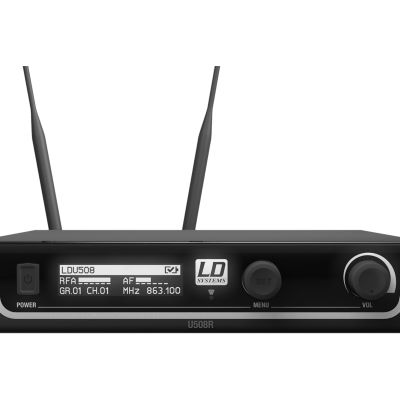

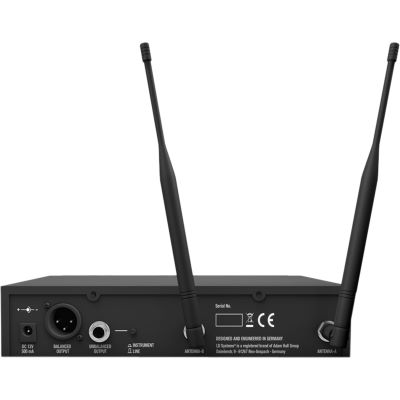

LDU508R - Receiver
- Product type: Wireless microphone system accessories
- Type: Receiver
- Modulation type: FM
- Radio frequency range: 823 - 832MHz, 863 - 865MHz
- Channels: 96 (8 groups of 12 channels)
- Groups: 8
- Antenna inputs: 2
- Antenna connector: BNC
- Frequency response: 30 - 16000Hz
- Noise suppression: Squelch
- Total harmonic distortion (THD): <0.1%
- Signal to noise ratio: > 100dB
- Audio output balanced: XLR
- Audio output unbalanced: 6,3 mm jack
- Max. Output level: +10dBu
- Controls: Digital encoder, power on/off, volume
- Display elements: OLED display
- Power supply: 12 - 18 V DC
- Operating voltage: 12 V DC, 500 mA
- Width: 212mm
- Height: 44mm
- Depth: 159mm
- Weight: 0.85kg
- Accessories (included): power adapter, audio cable, 2 x antenna
- Other features: pilot tone, channel search function, IR frequency synchronization

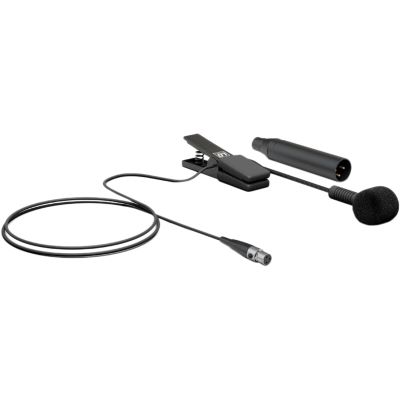

LDWS1000MW - Clip microphone for wind instruments
- Product type: Wireless microphone system accessories
- Type: Microphones
- Frequency response: 50 - 18.000Hz
- Polar pattern: Cardioid
- Sensitivity (open circuit, 1 kHz): - 45 dB +/- 3 dB
- Nominal impedance: 250Ohm
- Max. SPL (1% THD @ 1 kHz): 133dB
- Phantom power requirements: 5V
- Microphone connector: Mini-XLR (3-pin, female)
- Cable length: 1.5m
- Accessories (included): foam windscreen, LDPHA phantom power adapter (note: included only when ordered separately)
- Weight: 0.05kg
- Features: 70mm gooseneck
Specs:
- Color: Black
- Set Offer: yes
- Frequency band: UHF
- Type: Radio System
- Theme: Microphones
