LD Systems V 115 BA Subwoofer aktiv Product Details
The LDV115BA is a powerful, versatile active subwoofer with precisely defined and dynamic bass reproduction down to 35Hz and a maximum sound level pressure of 127dB.
The especially compact bass-reflex design made of 15mm birch plywood is loaded with a specially developed 15" custom bass driver with a powerful ferrite magnet and a 4" voice coil. Active amplification is provided by a built-in Hypex Class D power stage with 700W continuous power and all protection circuits for reliable operation. The extensive connector panel has XLR/jack combos for signal input and XLR sockets as direct and 100Hz satellite outputs. The LDV115BA has a volume control, phase reverse switch, and adjustable low-pass filter for optimal system integration. LEDs indicate functional status and triggering of the limiter and protection circuit.
The especially compact bass-reflex design made of 15mm birch plywood is loaded with a specially developed 15" custom bass driver with a powerful ferrite magnet and a 4" voice coil. Active amplification is provided by a built-in Hypex Class D power stage with 700W continuous power and all protection circuits for reliable operation. The extensive connector panel has XLR/jack combos for signal input and XLR sockets as direct and 100Hz satellite outputs. The LDV115BA has a volume control, phase reverse switch, and adjustable low-pass filter for optimal system integration. LEDs indicate functional status and triggering of the limiter and protection circuit.
Features:
- Type: Bass Reflex
- Frequency response: 35 - 200 Hz
- Power Output (RMS): 700 W
- Sensitivity (1 W /1 m): 100 dB

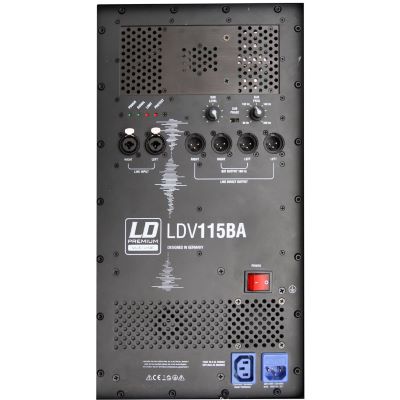

- Input: Line In: 2 x XLR / 6.3 mm jack
- Output: Line Out: 2 x XLR, 2 x XLR (100 Hz High Pass, 18 dB)
- Controls: Volume, adjustable Low Pass (80 - 200 Hz), 180° Phase reverse
- Indicators: Power, signal, limit, protect
- Cabinet Material / Surface: 15 mm Plywood / Dura-Coat LX
- Dimensions (W x H x D): 466 x 530 x 720 mm
Specs:
- Type: Subwoofer
- Theme: PA and Sonication
