Marian Marc X Product Details

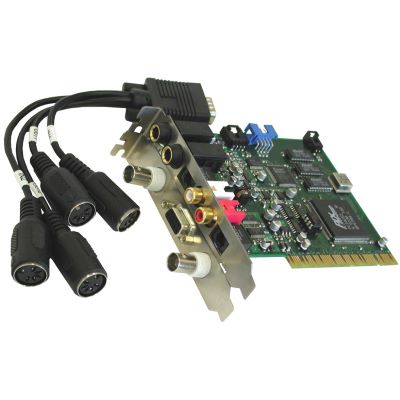

The basic card comes with 12 audio inputs and 12 outputs - analog, S/PDIF and ADAT™ I/O's, 2 MIDI I/O, Wordclock I/O and a 32 channel DSP Mixer. Thus, the Marc X stands for an ideal, complete solution for the professional audio use. In connection with high quality 24 Bit/96kHz converters and the sound optimised circuit design this compact PCI card plus slot card delivers professional audio quality.
The basic outfit can be extended with one optional extender. Currently, there are two options: The Extender ANX expands the system by two additional analog stereo I/Os. The Extender DGX provides two AES/EBU I/Os with sample rate converters. This makes the marc X an audio system with all in all 16 physical in- and outputs.
Features:
In-/Outputs
Driver suite
- 1 x stereo analog I/O (24/96)
- 1 x stereo S/PDIF I/O (opt., RCA)
- 1 x ADAT I/O (24/48)
- intern. CD Input (analog/digital)
- 2 x MIDI I/O
- 1 x Wordclock/Superclock I/O
- Marc X Extender port
- short PCI- + slot card: 32-bit 33MHz, 5V
- Sample formats: 8, 16, 20, 24, 32 Bit Mono/Stereo
- Sample rates Analog: 8-96 kHz +/-15% Pitch
- Sample rates Digital: 32-96 kHz +/-15% Pitch
- Sample rates ADAT: 36 - 52 kHz
- Frequency Response @ 44,1 kHz: 20 Hz to 20 kHz
- Frequency Response @ 96 kHz: 20 Hz to 40 kHz
- Maximum input/output Level: +8 dBu
- min. output gain: -90 dB
- SNR AD @ 44.1 kHz: 104 dB(A)
- SNR DA @ 44.1 kHz: 110 dB(A)
- THD+N AD @ -0,5 dbFS: 0,003%
- THD+N DA @ 0 dbFS: 0,002%
- Windows XP, 2000: MME, ASIO 2.0, DirectSound, GSIF, WDM (Kernel streaming)
- Windows 95, 98, ME: MME, ASIO 2.0, DirectSound, GSIF
