Mipro MA-505DB-TH80 2 Kanal Taschen-u. Handsender Set

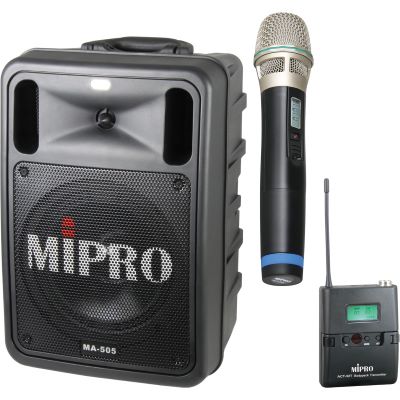

The Mipro MA-505DB-TH80 2 channel pocket and hand-held transmitter set offers optimal sound reinforcement with the MA-505R2DPM3 mobile speaker system, the ACT-32T UHF pocket transmitter and the ACT-32H-80 UHF hand-held transmitter.

Mipro MA 505 R2DPM3:

• Output power: 145 W (max.) 100 W (RMS)
• Amplifier: Class D
• Speakers: 1'' tweeter and 8'' woofer
• Sensitivity: normal load 91 dB / maximum load 109 dB
• Distortion factor: < 1%
• Transmission range: 50 Hz-18 kHz
• Media: USB/SD player/recorder, Bluetooth interface
• Audio connections: Input: XLR balanced; 6.3 mm jack Mic-In; 3.5 mm Line-In; 3.5 mm mini jack Line-Out; 6.3 mm jack for passive additional loudspeaker
• Possible applications: Loudspeaker stand, flat surface, carrying handle
• Power source: External switching power supply 100-240 V AC; 25 V/4.5 Ah rechargeable lithium battery (MB-35)
• Capacity: Up to 8 hours operating time with 4 hours charging time; 4-step LED display of battery status
• Dimensions (WxHxD): 285 x 400 x 225 mm

• Weight: 8,5 kg / 18,7 lbs
radio system
• Integrated receivers: 2 built-in individual receivers
• Receiver/transmitter modules: Up to 2 modular single receivers or 1 receive and 1 transmit module can be retrofitted
• Bandwidth: 24 MHz (center gap 9 MHz)
• Frequency setup: Up to 16 programmed channels (center gap up to 7 channels)
• Frequency ranges: 823-832 Mhz (center gap)

Mipro ACT 32T:

• Bandwidth: 24 MHz
• Frequency range: 823-832 MHz
• Tuner procedure: PLL Synthesizer Tuner

• Synchronization: ACT Sync (Automatic Channel Targeting)
• Transmission power: 10 mW / 50 mW adjustable
• Volume adjustment: -6 dB, 0 dB, -6 dB (3 levels) 0 dB= Input sensitivity microphone
• Max. Input power: 0 dBV
• External mute switch: Optional external mute switch MJ-70
• Microphones Neckband: MU-13 / MU-23 / MU-53HN / MU-55HN
• Microphones Lavalier: MU-53L / MU-55L
• Batteries: 2x AA Alkaline
• Operating time: Up to 12 hours
• Display: LCD display
• Housing: plastic
• Dimensions (WxHxD): 63 x 82 x 22 mm

• Weight: 81g without batteries

Mipro ACT 32H:

• Bandwidth: 24 MHz
• Frequency range: 823-832 MHz
• Tuner procedure: PLL Synthesizer Tuner

• Synchronization: ACT Sync (Automatic Channel Targeting)
• Transmission power: 30 mW
• Max. Input sensitivity: 140 dB SPL
• Interchangeable capsules: Premium real capacitor or dynamic capsules (standard: MU-80, supercardioid)
• Batteries: 2x AAA Alkaline
• Operating time: Up to 12 hours
• Display: LCD display
• Housing: plastic
• Dimensions (ØxL): 50 x 233 mm

• Weight: 246 g without batteries

Specs:

• Power: 145 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 8
• Tweeter: 1 x 1
• Number of channels: 3
• Set Offer: no
• Bluetooth: Yes
• Type: Full Range Speaker
• Theme: PA and Sonication
