Monacor SP 8 150PA
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- Related Products
- more of Monacor
- all articles from the category 8 Inches Replacement Speakers

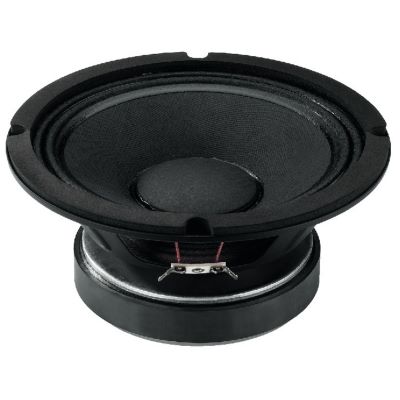

Monacor SP 8 150PA Product Details
Monacor SP 8 150PA with good average efficiency and broadband transmission characteristics in midrange applications.
Features:
- Impedance: 8Ω
- Resonant frequency: 88Hz
- Maximum power handling: 300W
- Rated power: 150W
- Average sound pressure level: 96dB
- Compatibility: 0,16mm/N
- Moving mass: 20g
- Mechanical Grade: 4,12
- Electrical quality: 0.48
- Total quality: 0,43
- Equivalent volume: 12l
- DC resistance: 6,9Ω
- force factor: 12,6Tm
- voice coil ind.: 0,6mH
- voice coil diameter: 50mm
- Voice coil carrier: Kapton
- Linear deflection: ±1.25mm
- Eff. membrane area: 219cm²
- Weight: 3kg
Specs:
- Type: Replacement Part
- Theme: PA and Sonication
