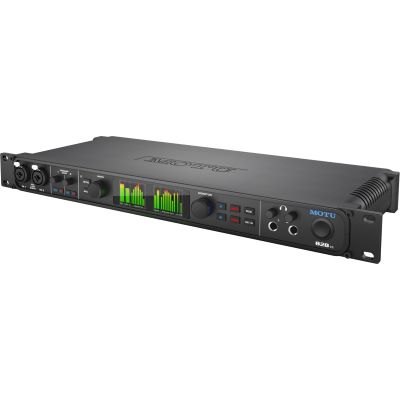

MOTU 828es Product Details
The MOTU 828es is equipped with the award-winning quality and functionality of its predecessor 828x and combines it with the MOTU AVB network technology. New features are the high-resolution dual colour display, the built-in talkback microphone and button directly on the front panel and the quick switch function for comparison listening for two speaker pairs. The rugged case conceals the renowned ESS Sabre32 DAC chipset and the best converters an 828 has ever had. The 828 ES can be connected to a Mac or PC via Thunderbolt, Hi-Speed USB 2.0 or AVB / TSN Ethernet or via an adapter to iOS devices such as an iPad, and is equally suitable for studio and stage use. As an interface or standalone mixer, the 828es offers 28 separate inputs and 32 separate outputs, including two XLR/TRS "combo" microphone inputs, dedicated main outputs with XLR jacks, and two independent headphone outputs on the front panel. In addition, there are of course all MOTU AVB-typical functions, such as the integrated 32-bit floating point DSP for mixing and effects, control via the mobile web app and the flexible matrix for splitting and routing.
Features:
- Combines the award-winning functionality and quality of its predecessor 828x with MOTU AVB network technology
- Integrated 32-bit floating point DSP for mixing and effects
- Flexible matrix for splitting and routing
- High-resolution dual-color display
- Built-in talkback microphone with front panel button
- Toggle function for comparison listening for two speaker pairs
- Robust housing
- Equipped with the renowned ESS Sabre32 DAC chipset
- New, even better converters
- Connection for Mac and PC via Thunderbolt, Hi-Speed USB 2.0 or AVB / TSN Ethernet or via adapter to iOS devices such as iPad
- Suitable for studio and stage
- 28 separate inputs incl. 2 XLR/jack combo microphone inputs
- 32 separate outputs
- Dedicated main outputs with XLR sockets
- Two independent headphone outputs on the front panel
- Control via mobile web app possible
Specs:
- Color: Black
- Rack Mountable: yes
- Line Inputs: 8
- Line Outputs: 8
- Mic Inputs: 2
- Phono Inputs: 0
- Instrument Inputs: 8
- digital Output: ADAT / S/PDIF
- digital Input: ADAT / S/PDIF
- Headphone Out: yes
- MIDI Inputs: 1 Port
- MIDI Outputs: 1 Port
- Host Port: USB / Thunderbolt
- Number of headphone outputs: 2
- Type: Audio Interface
- Theme: Recording and Studio
