OMNITRONIC DB-100B Dezibel Level Meter

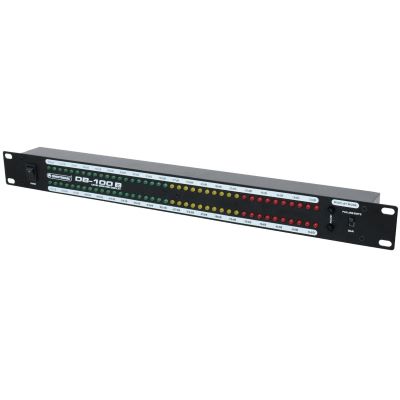

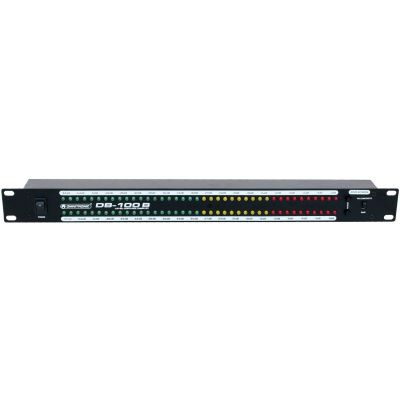

The DB-100B is a decibel levelmeter with three-color LED display, which has 40 LEDs per channel. He has a display range from -57dB up to 0dB.

Features:

• Three-colour LED display with 40 LEDs per channel
• Display mode switchable (dot or bar display)
• Sensitivity controller per channel
• Display range: -57 dB to 0 dB

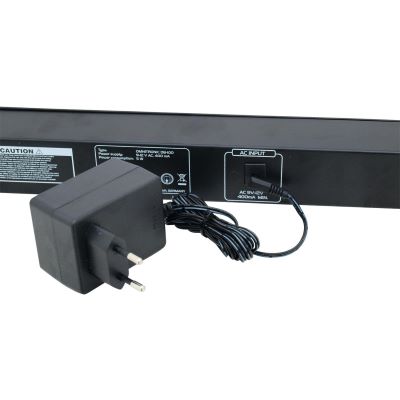

• Power supply via supplied power supply unit
• Rack mounting, 1 U

Technical data:

• Power supply:230 V AC, 50 Hz ~,via supplied power supply unit
• Total connected load:5 W
• Input sensitivity: approx. 350 mV - 7 V
• Display range:-57 dB - 0 dB (in 3 dB steps)

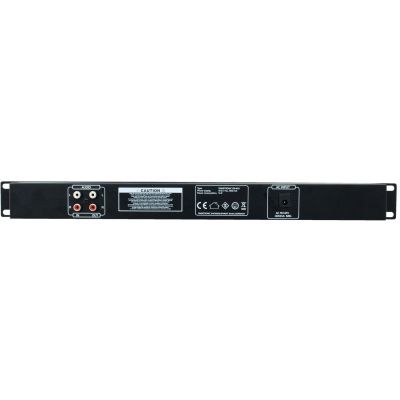

• Audio Connectors:Stereo Cinch
• Dimensions (WxDxHxD):482 x 52 x 44 mm (19", 1 U)
• Weight:780 g
• Shipping weight:1,20 kg

Specs:

• Type: Accessories
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (689.58 KB)
