OMNITRONIC EP-220PR Vorverstärker Audioplayer Bluetooth

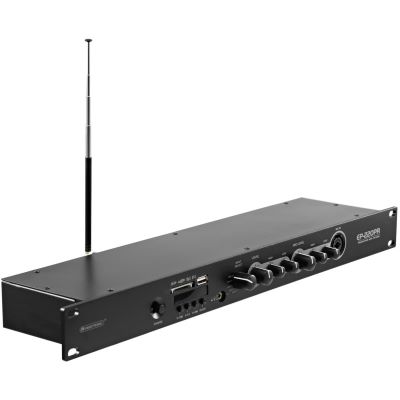

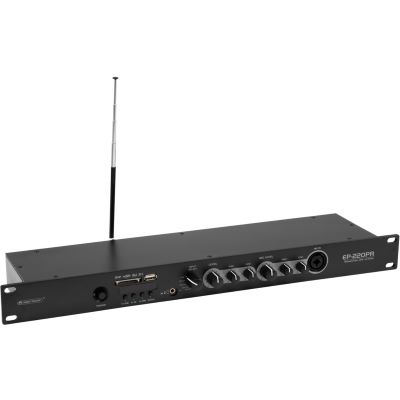

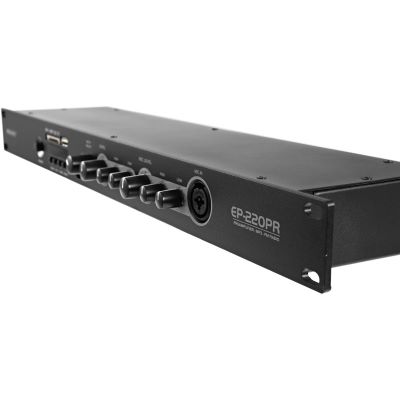

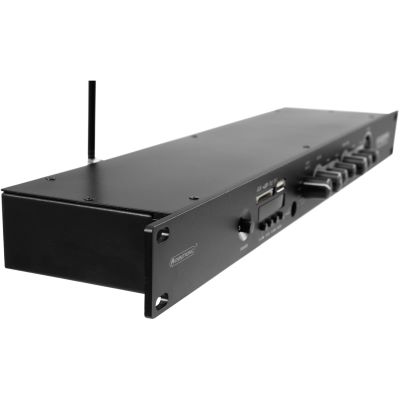

The OMNITRONIC EP-220PR is a universal 19" preamplifier with audio player, Bluetooth and FM radio. Ideal for simple music control in restaurants, fitness studios and retail outlets, among other places

Features:

• Integrated audio player with Bluetooth receiver
• Wireless music transfer from your music devices (e.g. smartphone, tablet PC) via Bluetooth
• USB 2.0 port and SD card slot
• 5 stereo line inputs

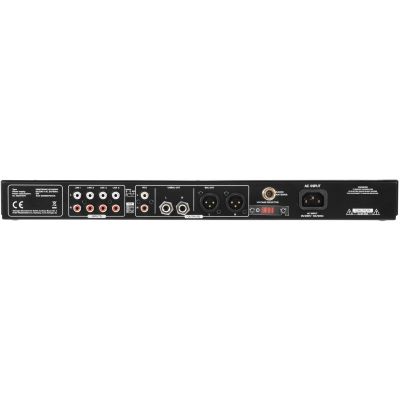

• 4 RCA sockets L/R on the rear panel and 3.5 mm jack on the front panel
• Audio source switch
• Volume, bass and treble controls
• 1 microphone input with volume, bass and treble controls on the front panel
• 3 stereo master outputs
• Rack mounting, 1 U
• Master Equalizer: 1 x 2-band stereo controller

Technical data:

• Power supply:115/230 V AC, 50/60 Hz
• Total connected load:5 W
• Frequency range: 20-20000 Hz, ±0.5 dB
• Signal-to-noise ratio:100 dB
• Distortion factor:0,1 %
• Input impedance: 20 kOhm (balanced), 10 kOhm (unbalanced)
• Input sensitivity:1 V
• Connections input:
• Line 1-4: Cinch L/R
• Mic:Combination XLR/6.3 mm jack
• Aux:3.5mm stereo jack
• Connections Output: Cinch L/R, 6.3 mm jack L/R, XLR L/R
• Dimensions (L x W x H):483 x 128 x 44 mm / rack mounting, 1 U
• Weight:1,8 kg
• Audio player:
• Playback format:MP3, WMA, WAV
• Suitable storage media:USB devices and SD(HC) cards up to 32 GB
• File system:FAT16/32
• Bluetooth:
• Carrier frequency: 2.4 GHz
• Range: approx. 10 m
• Audio Player:USB + SD + Bluetooth + FM Radio
• Weight:1.87 kg
• width:48,3 cm
• Depth:12,8 cm
• Height:4,45 cm

Specs:

• Color: Black
• Type: Accessories
• Theme: DJ Equipment
