OMNITRONIC SMARD-24RCA Digitaler DSP-Controller

OMNITRONIC SMARD-24RCA Digitaler DSP-Controller

EUR 89.90

incl. VAT | incl. Shipping Cost

Availability online:
is ordered
Delivery time: 3 ‐ 10 business days (Germany)

Check availability in store:

Add to Cart

Secure Shopping

  • Fast shipping
  • 1 month right of withdrawal
  • Buyer protection
  • Secure payment with SSL encryption


No review available





Shipping Weight:

0.30 kg

Shipped via:





OMNITRONIC SMARD-24RCA Digitaler DSP-Controller Product Details

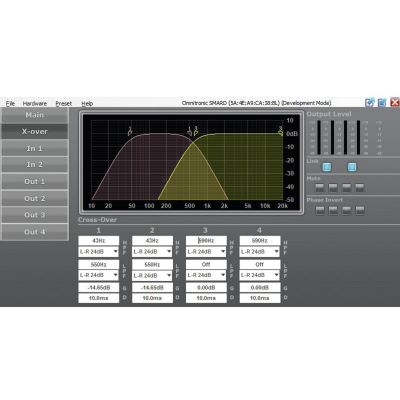

The SMARD-24RCA is a flexible Digital System Processor (DSP) in a small format. It will convince you with its outstanding sound quality in combination with its compact dimensions. With the included software all relevant settings can be made easily and clearly on the PC or MAC. These include frequency filters, signal mixing/routing, EQ settings in inputs and outputs, signal delay and the limiter/compressor. You can create up to 50 user presets, store them in the device, and protect them from unwanted access with a multi-level lock function. Features such as the integrated Real Time Analyzer and FIR filter in the inputs round off the package. After you have made the settings, operate the SMARD-24RCA stand alone with an optional power supply. The System Processor is ideal for speaker equalization and for adapting your speaker system to the listening room. The SMARD-24RCA also leaves nothing to be desired for HiFi fans and do-it-yourself builders: It allows you to integrate one or more subwoofers into any system and gives you the option of extensive room correction. Effectively eliminate annoying standing waves in the bass. Or correct the frequency of your desktop speakers to eliminate annoying roar. Thanks to its compact design, the Smard-24RCA is also ideally equipped for use in car HiFi applications.


  • Flexible output configurations for all common stereo and mono operating modes
  • 2 analog cinch inputs
  • 4 analog cinch outputs
  • Parametric 10-band equalizer per input and output
  • Selectable filter types per equalizer: Bell, High Shelf, Low Shelf, Notch, Allpass
  • Active crossover with Bessel, Butterworth and Linkwitz-Riley filters with up to 24 dB/octave edge steepness
  • Easily store, transfer, and manage presets
  • Up to 50 user presets can be stored in the device via the software
  • Up to 10 ms signal delay adjustable at each input and output
  • Limiter and compressor for each input and output
  • Phase position invertible per output (180°)
  • Lock function to protect program settings
  • 24-bit AD/DA converter
  • 48 kHz Sampling rate
  • FIR filter
  • Real-Time Analyzer Function (RTA)
  • Incl. control software for programming and remote control from computer via Micro-USB interface
  • wall mounting
  • Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and higher
  • Special effect: FIR feedback-free filter

Technical data

  • Power supply: USB connection or 6 V DC, 500 mA via power supply unit (accessory)
  • Inputs: Cinch
  • Maximum input level: +9 dBu
  • Dynamic range:113 dBA
  • Outputs: Cinch
  • Maximum output level: +6 dBu
  • Dynamic range:103 dBA
  • Sampling frequency: 48 kHz
  • Filter types: Bessel, Butterworth or Linkwitz-Riley
  • Slopes:6, 12, 18 or 24 dB/octave
  • Crossover frequency: 20-20000 Hz
  • Delay: 0-10 ms
  • Communication: Micro-USB
  • Dimensions (WxHxD): 100 x 100 x 130 mm
  • weight: 0,3 kg
  • Frequency range: 20 - 20000 Hz
  • height: 3,1 cm
  • Depth: 10 cm
  • width: 13 cm
