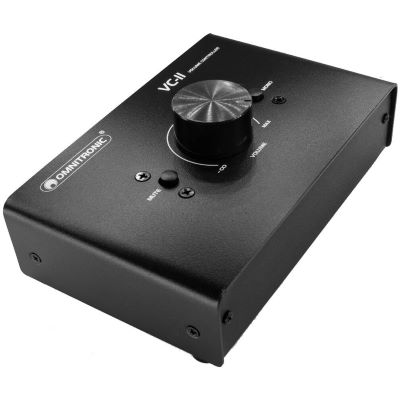

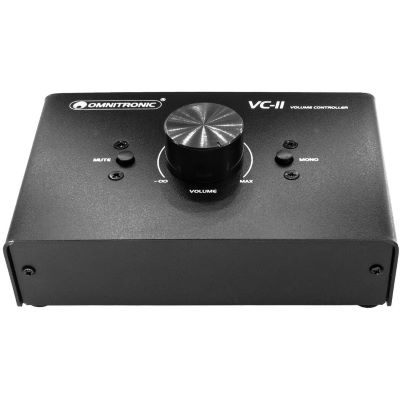

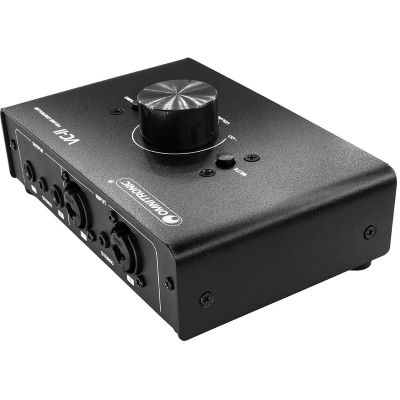

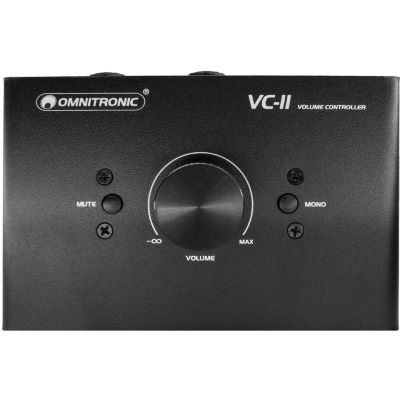

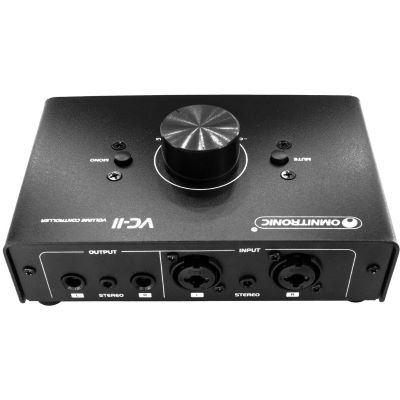

OMNITRONIC VC-11 Passive Volume Controller – Monitor Controller with Mute and Mono Summing

The OMNITRONIC VC-11 volume control is a compact, passive monitor controller for precise control of analog audio signals. It is ideal for use between PC sound cards, audio interfaces, mixing consoles, powered speakers, or amplifiers. As a passive device, the VC-11 requires no power supply yet still provides full control over level, mute, and mono summing—all in a rugged desktop enclosure.

With a large, easy-to-grip level control, convenient switches for mute and mono, and versatile connectivity options, this controller offers everything needed for efficient monitoring in the studio or in a home recording setup. Its ease of use makes it a reliable tool for musicians, sound engineers, and content creators.

Precise volume control without a power supply

As a passive device, the VC-11 requires no power supply or batteries. Volume is adjusted continuously via the central rotary control, which allows for excellent control even during subtle level adjustments. This is particularly useful in studio situations where listening at different volume levels is essential.

The passive design also prevents signal distortion caused by electronic components and ensures linear, transparent signal transmission across the frequency range from 20 Hz to 20,000 Hz.

Versatile Connection Options for Flexible Integration

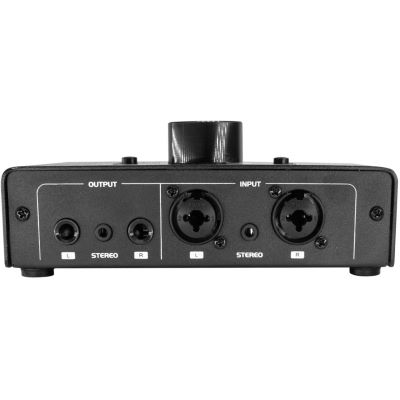

The OMNITRONIC VC-11 offers a wide range of input and output formats, allowing it to be easily integrated into a variety of audio setups:

• 2 × combo jacks (XLR/6.3 mm jack) as balanced line inputs
• 1 × 3.5 mm stereo jack for connecting smartphones, laptops, or tablets
• 2 × 6.3 mm jack sockets (mono) as balanced outputs to monitor speakers
• 1 × 3.5 mm stereo jack as an additional output for headphones or powered speakers

Thanks to this wide range of connections, the VC-11 is ideal for use in professional studios as well as home or project studios.

Functionality at a Glance: Mute & Mono Switch

The Mute switch allows you to instantly mute all outputs—perfect for quick breaks, protection against feedback, or as an emergency stop function in case of signal problems.

The mono summing switch allows you to switch the stereo signal to mono—an important feature for mixing and mastering to check the mono compatibility of productions.

Compact desktop console design with a rugged enclosure

The VC-11’s housing features a desktop console design and impresses with its sturdy construction and an ergonomically angled surface that allows for comfortable operation of the controls and switches.

With its compact dimensions of 16 × 10.8 × 6.3 cm and a weight of just 0.51 kg, the controller fits on any studio desk or rack board. The matte black finish blends discreetly and professionally into any studio environment.

Ideal for studios, podcasting, livestreaming, and more

The OMNITRONIC VC-11 is ideal for applications where simple and direct volume control is desired without software or additional equipment. It truly shines in the following scenarios:

• Monitoring in DAW environments
• Volume control for video and audio production
• Podcast and streaming setups
• Sound systems in conference and training rooms

Features:

• Precise volume control for analog audio signals
• Passive—no power supply required
• Large, smooth-operating volume control
• Mute switch for instant muting
• Mono switch for summing stereo signals
• Inputs/Outputs:
• 2 × XLR/jack (combo jacks) inputs
• 1 × 3.5 mm stereo jack input
• 2 × 6.3 mm mono jack outputs
• 1 × 3.5 mm stereo jack output
• Frequency range: 20 – 20,000 Hz
• Desktop console housing, matte black
• Dimensions: 16 × 10.8 × 6.3 cm
• Weight: 0.510 kg
• Protection rating: IP20

Specs:

• Talkback Section: no
• Headphone Out: no
• LED Display: no
• Set Offer: no
• Color: Black
• Type: Monitor Controller
• Theme: PA and Sonication
