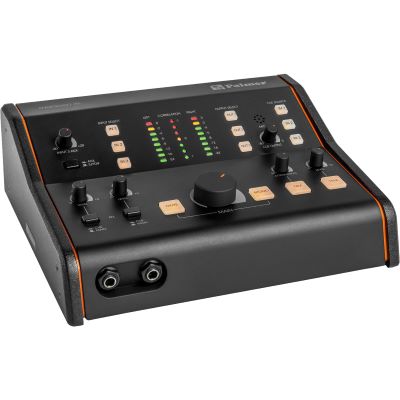

Palmer Monicon XL

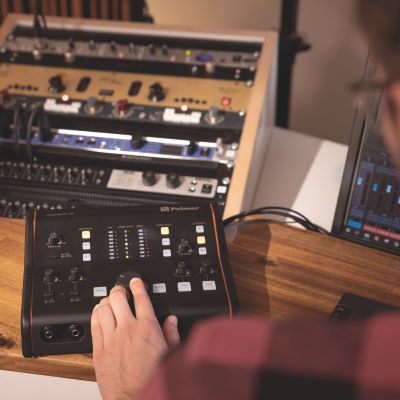

Switching between different signal sources and monitors is arguably one of the most common tasks in any studio. With its ergonomic console design and two clearly structured control levels, the Palmer MONICON XL is the perfect, intuitive control center for all your needs. Selecting audio sources and speakers is quick and easy with the touch of a button.

The Palmer studio monitor controller features three analog stereo inputs, an S/PDIF input, and outputs for three pairs of monitors with individual volume controls for level balancing. An additional mono-summed full-range output allows for the connection of either a mono monitor or a subwoofer. An exclusive highlight of the MONICON XL is the correlation meter, which displays the phase difference between the left and right channels of a stereo signal. This allows you to quickly and easily detect mono compatibility issues in your mix. To support your personal workflow, you can customize the controller

Thanks to its fully analog audio circuitry, the MONICON XL exhibits absolutely no latency or signal coloration. With additional features essential for any studio, the unit is far more than just a monitor controller. Two headphone outputs with volume controls and main cue selectors, a Cue Master control, and a switchable, volume-adjustable talkback microphone are all included, as are a mute switch and a dim button with volume control that instantly reduces the monitor level by a preset amount.

Features:

• Latency-free analog signal path
• Customizable
• L/R level meter with selectable calibration +4, +10, or +18 dBu
• Correlation meter for checking mono compatibility

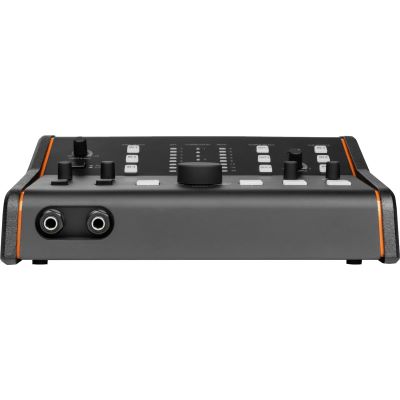

• Two headphone outputs with volume controls and main cue selectors

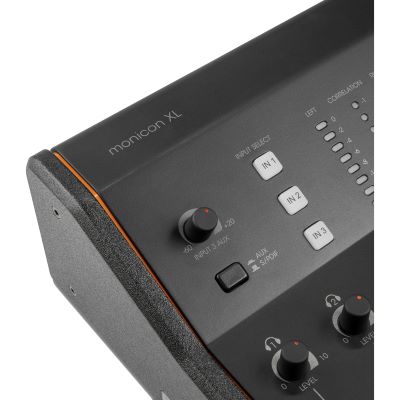

• Three analog inputs, one S/PDIF input
• Three speaker outputs with volume controls for level balancing
• Mono sum output for subwoofer or mono monitor
• Main and Cue direct outputs

Technical Specifications:

• Number of channels: 3 x switchable balanced outputs, 1 x CUE output, 1 x main output
• Number of inputs: 3 + SPDIF
• Input connectors: 3.5 mm stereo jack, 6.3 mm jack, RCA, SPDIF
• Input type: Balanced / Unbalanced depending on the jack plug
• Max. input level: 20 dBu
• Input impedance: (balanced) 10,000 ohms, (unbalanced) 5,000 ohms
• Number of outputs: 7 x stereo
• Output connectors: TRS balanced (1–3), TRS unbalanced (CUE, MAIN, Headphones 1 & 2)
• Output impedance: 600 ohms
• Frequency response: 12 – 90,000 Hz
• Total Harmonic Distortion (THD): 0.002% (20–20,000 Hz)
• Signal-to-noise ratio (SNR): 102 dB (A-weighted) @ +4 dBu
• Dynamic range (DR AES17): 115 dB
• CMRR: > 55 dB
• Max. attenuation: (attenuator + mute) 111 dB, (attenuator) 86 dB

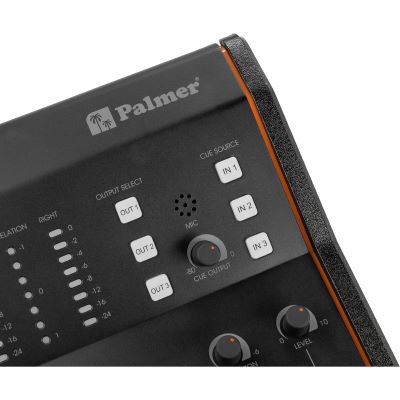

• Controls: Attenuation, Audio DIM, Output Selection, Input Selection, Mono, Mute, PFL Source, Talkback
• Enclosure material: Wood, sheet steel
• Enclosure finish: powder-coated
• Dimensions: W 25.40 x H 8.40 x D 21.50 cm
• Weight: 1.51 kg

Specs:

• Talkback Section: yes
• Headphone Out: yes
• LED Display: yes
• Set Offer: no
• Color: Black
• Type: Monitor Controller
• Theme: Recording and Studio
