Palmer MI Pocket Amp Bass

Palmer's Pocket Bass Amp offers a multitude of effective sound shaping possibilities. It is perfect for practicing, recording and live performance. It is an effect pedal and preamp in one and perfect for active and passive bass. Drive and Saturation controls complete the Clean, Overdrive and Fuzz operating modes, and the 3-band equalizer with semi-parametric center control is specifically designed for the frequency response of electric basses. The Pocket Bass amp simulates the characteristics of modern and vintage loudspeakers, while the blend control allows you to continuously mix original and effect signals. External effect pedals can be connected to the Pocket Bass Amp, audio players and headphones can be used to play along quietly, and the tuner output can be assigned to the footswitch. The compact unit also serves as a DI-Box, the balanced XLR output can be switched before or after signal processing by the Pocket Bass Amp. The stable cast housing, bright LED status indicators and a ground lift switch complete the feature list. The Pocket Bass Amp requires a 9V monobloc battery or a mains adapter for power supply.

Features:

• Versatile effect pedal and preamp for basses
• Use with all bass systems, power amplifiers, mixers and headphone amplifiers
• Damping switch for use with active and passive instruments
• Three selectable basic sounds: Clean, Overdrive and Fuzz
• Controller for Drive and Saturation
• 3-band EQ with semi-parametric center control
• Simulation of modern and vintage bass boxes
• Blend controller for mixing direct and effect signals

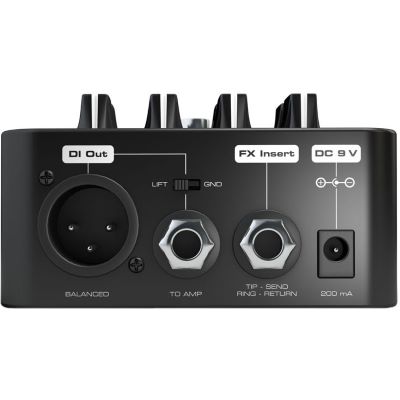

• At the same time DI-Box with balanced XLR output
• DI switchable before or after signal processing
• Tuner output (can be connected to the footswitch)

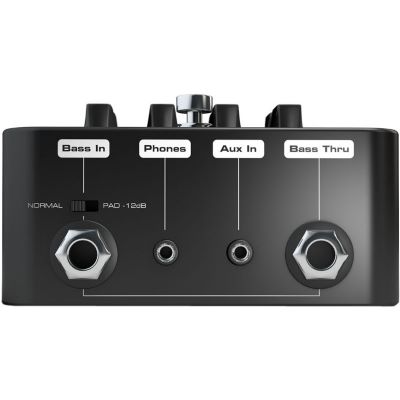

• Insert, stereo line input and ground lift switch

Technical Specificatons:

• Product type: Guitar Amplifier
• Technology: Solid State
• Number of inputs: 2
• Input connections: 6.3 mm jack plug
• Input impedance: 1 MOhm
• Number of outputs: 4
• Output connectors: 2 x 6.3 mm jack, 3.5 mm jack, XLR
• Output impedance: TRS 10000 Ohm, XLR 510 Ohm
• Number of channels: 1
• Display elements: On/Off, peak, signal
• Control elements: Bass, Drive, Ground-Lift, Highs, Input Pad, Mid, Mid Frequency, Mode, Mute, Pre/Post, Volume
• FX loop: yes

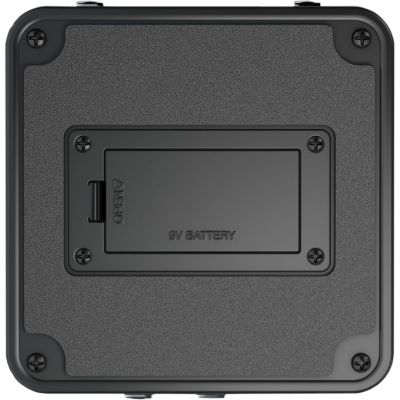

• Power supply: 9 V block battery, 9 V DC - 12 V DC
• Housing material: Die-cast aluminium
• Width: 100 mm
• Depth: 100 mm
• Height: 55 mm
• Weight: 0,36 kg

Instruction manual / Safety instructions:

• Manual (999.88 KB)
