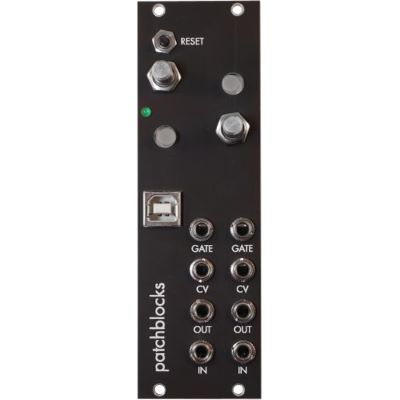

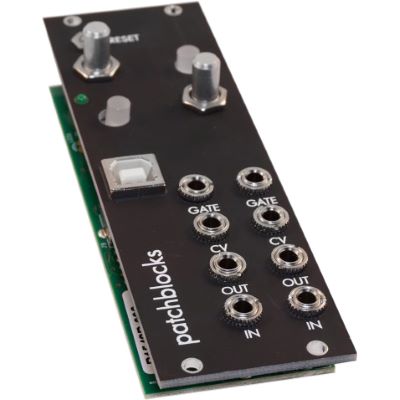

Patchblocks Patchblock Eurorack Module Schwarz

Create a DSP patch
With our Patchblocks Editor you can define your own functionality for this Eurorack Module. Turn it into a filter, random sequencer, bitcrusher, trigger manipulator ... whatever you think your setup needs.

Triggers, CV, Audio
Our Eurorack Module takes ±5V as CV input for the two knobs, ±10V as Audio signal input and +5V for the buttons. What you do with them is up to you. The signal output is ±7.8V.

Daisychain for more PB Power!
You can daisy chain several of our modules to make use if the internal 2 digital audio busses and the MIDI bus between the modules.

Features:

• Size: 8HP, Depth 30mm (skiff friendly)
• Power: 50mA @ +12v, 25mA @- 12v, 30mA @ +5v
• Audio Input: -10v to +10v
• Audio Output: -7.8v to +7.8v
• Gate/Trigger Input: An input +5v signal will trigger the two assignable buttons, overvoltage protected
• CV Inputs: Control voltage inputs for the two assignable knobs, expects an input voltage of-5v to +5v
• USB Input: ESD and transient voltage protected
• Colour: black

Specs:

• Type: Replacement Part
• Theme: Keyboard Instruments
