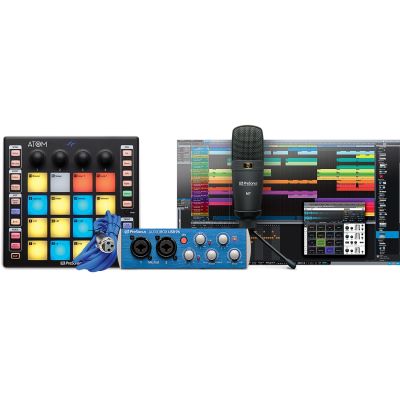

PreSonus Atom Producer Lab

Produce your tracks and achieve professional results with this tightly integrated, full-fledged PreSonus® production kit. Start triggering samples and loops in real time with the flexible and intuitive ATOM Pad Controller. Record vocals and create your own sample library with the bus-powered AudioBox USB® 96 Audio/MIDI interface and M7 large-diaphragm condenser microphone. Record everything in Studio One® Artist and mix it with the Bonus MVP Loop Content Library and Studio Magic Plug-in Suite for professional results. No other recording and production software is so easy to learn and use, but can still produce in studio quality. Studio One® Artist allows you to work fast and focus on your inspiration, offering unlimited tracks and plug-ins. Access powerful editing tools without scrolling through menus.

features

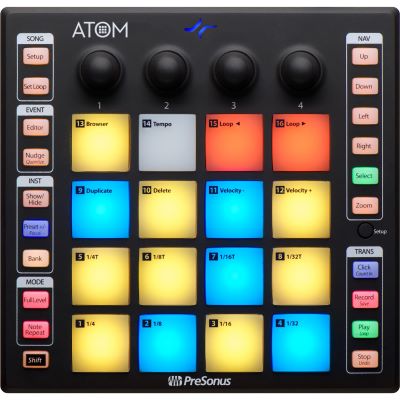

• ATOM Production and Performance Pad Controller
• Tightly integrated, flexible production and performance environment with integrated Studio One® Artist
• Produce, play virtual instruments and trigger samples and loops with unsurpassed expressiveness and flexibility.
• 16 full-fledged, speed- and pressure-dependent RGB LED pads in full size
• Pressure switchable between MIDI aftertouch, channel pressure and CC commands
• 8 assignable pad benches
• Selectable pad speed curves and pad pressure thresholds
• 20 assignable keys
• 4 endless encoders
• MIDI "Keyboard" mode, Note Repeat mode and Full Velocity mode (Send Velocity 127 only)
• Contains MVP Loops content developed specifically for ATOM.
• Compatible with most music production and performance software products
• USB connectivity

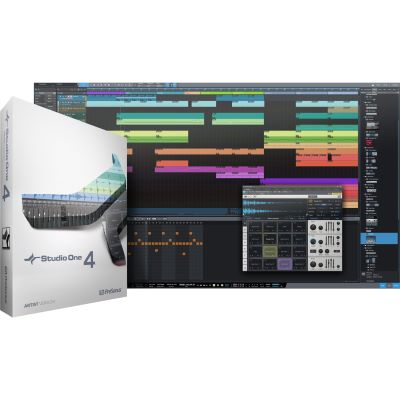

• Studio One® Artist Production Software
• Elegant working environment with only one window
• Powerful drag-and-drop functionality
• Unlimited number of audio tracks, MIDI tracks, virtual instruments, busses and FX channels
• Content browser with convenient sorting options and preview player
• Most intuitive MIDI mapping system on the market
• Time stretching and resampling of audio in real time
• Multitrack Computing and MIDI Editing
• Transient detection and processing and groove extraction
• Automatic delay compensation
• Advanced automation
• Instant configuration for PreSonus® controllers and interfaces, including AudioBox USB 96
• Compatible with ASIO, Windows Audio and Core Audio compliant interfaces
• 35 Native Effects 32-bit effects and virtual instrument plug-ins
• 10+ GB third-party software, loops and instruments
• Includes Studio Magic Plug-in Suite
• Mac and Windows compatible
• AudioBox® USB 96 2x2 USB 2.0 Recording System
• Bus-powered USB 2.0 audio and MIDI interface
• Perfect combination with Studio One® Artist software for Mac® and Windows® systems
• 24-bit resolution; 44.1, 48, 88.2 and 96 kHz sampling rates
• 2 combined mic/middle inputs with class A microphone preamps
• 48V phantom power (for supplied M7 microphone or other condenser microphones)
• Latency-free monitoring via internal analog mixer
• Headphone jack with volume control
• 1/3U rack mountable
• USB cable for connection to computer included in delivery

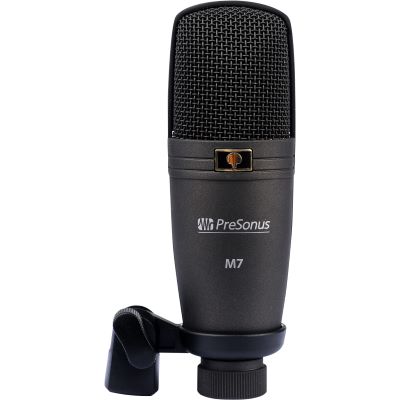

• MICROFON M7
• Large diaphragm version
• Captures far more detail than a dynamic microphone.
• Microphone tripod adapter
• Phantom power via AudioBox 96 USB
• 9' / 3 m cable included
• Cloth carrying bag included

Technical data

• Mac: Mac® OS X 10.11 or later (64-bit only)
• Intel® Core® 2 Duo processor (Intel Core i3 or better recommended)
• Windows: Windows® 7 (SP1 + platform update), Windows 8.1 or Windows 10 (64-bit only)
• Intel Core Duo or AMD® Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
• Mac and Windows systems: 4 GB RAM (8 GB or more recommended)
• USB 2.0 port
• Internet connection (required for installation and activation of the software)
• Monitor with 1366 x 768 resolution (High Dpi monitor recommended)
• 40 GB hard disk space
• Universal Control 2.9 or higher (for firmware updates)
• Studio One 4.1+ required for native integration
• Connection type: USB 2.0 (bus-powered)
• 16 full-fledged, speed- and pressure-dependent RGB LED pads in full size
• 20 assignable keys
• 4 endless knobs
• 1 Setup key
• Type XLR female symmetrical
• Frequency response (±3.0 dB) 20 Hz to 20 kHz
• Input impedance (balanced) 1200Ω
• THD+N (untd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%.
• S/N ratio (unit gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
• Common mode rejection (1 kHz, 55 dB gain) > 45 dB
• Gain control range (± 1 dB) 0 dB to 35 dB
• Maximum input level (unit gain, 1 kHz @ 0.5% THD+N) -3 dBu
• Phantom power (±2 VDC) +48 VDC
• Instrument Input: Type ¼" TS Socket Unbalanced
• Input impedance 0.5 MΩ
• Line Outputs: Type ¼" Balanced
• Output impedance 51Ω
• Headphone output: Type ¼" TRS Active Stereo Stereo
• Maximum power 60 mW/Ch @ 60Ω Load
• Frequency response (±1.0 dB) 20 Hz - 30 kHz
• MIDI I/O: Type Dual 5-pin socket DIN
• Digital audio: ADC dynamic range (A-wtd, 48 kHz sampling rate) 105 dB
• DAC dynamic range (A-wtd, 48 kHz sampling rate) 105 dB
• Bit depth 24
• Reference level for 0 dBFS +4 dBu
• Internal sampling frequency selections (kHz) 44.1, 48, 88.2, 96
• Power USB 2.0 bus-powered
• Physical: Dimensions 1/3U (steel housing)
• height: 5,5" (139,7 mm)
• Depth: 1.75" (44.45 mm)
• Width: 5.5" (139.7 mm)
• Weight: (2.27 kg)
• M7 Microphone Specifications
• Type Large diaphragm condenser microphone
• Element Electret
• Cardioid polar pattern
• Frequency response 40 Hz - 18 kHz
• Sensitivity -39 dBV/pa (12.2 mV/pa)
• Rated impedance 200Ω
• Equivalent input noise (ON) 20 dB
• Maximum sound pressure level 136 dB SPL
• Phantom power required +12 to +52 VDC, 3 mA
• S/N ratio 74 dB
• Dynamic range 11 dB
• Current consumption 3.5 mA
• Diameter 2.13" (54 mm), maximum
• Length 6,69" (170 mm)
• Weight 11,3 oz. (320g)

Specs:

• Color: Black
• USB-MIDI: USB
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Fader: 0
• Rotary knobs: 4
• Type: MIDI Controller
• Theme: Recording and Studio
