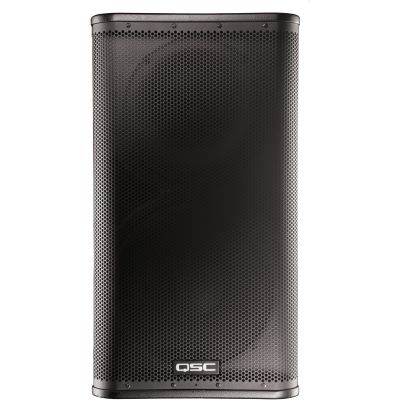

QSC HPR 122i Product Details
The HPR122i offers performers and audio professionals the power, technology and legendary reliability of QSC amplification combined with the simplicity and convenience of a multipurpose powered loudspeaker system. Whether your application is vocal reinforcement, dance music, or full tilt rock and roll and whether your need is main PA, or stage monitor, suspended or pole mounted, the HPR122i is your solution. With 131 dB of maximum output the HPR122i outperforms molded plastic box systems without significant additional weight or cost.
A 12" low-frequency woofer with 3" voice coil is powered by 400 watts of class H power. A neodymium magnet design provides ample motor strength for low end performance without adding unnecessary weight. The 1.4" diaphragm neodymium compression driver is powered by a 100 watt, class AB+B amplifier and is loaded on a 75º conical horn. It’s the same high-frequency driver you’ll find on the HPR153F 3-way loudspeaker system.
Features:
- Ideally suited for use as main PA or monitor
- High continuous power: 500 watts total amplifier power
- 75º conical horn provides predictable coverage regardless of cabinet orientation

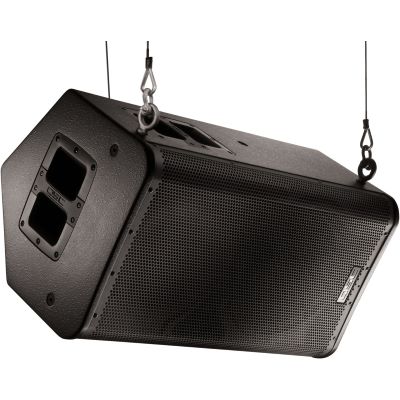

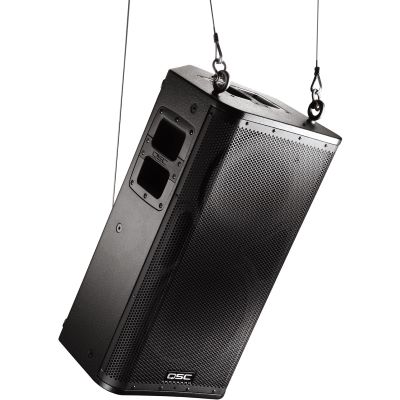

- Nine (9) M10 suspension points allow for multiple suspended applications
Specifications:
- Configuration: 12" 2-way multipurpose powered loudspeaker
- Transducers Low Frequency: 12" neodymium transducer with 3" voice coil
- Transducers High Frequency: 1.4" diaphragm compression driver
- Frequency Response (-3 dB): 62 Hz - 18 kHz
- Frequency Range (-10 dB): 53 Hz - 22 kHz
- Nominal coverage (-6 dB): 75° conical
- Maximum SPL (1 meter): 131 dB peak
- Power output: 400W LF Class H; 100W HF Class AB+B
- Input impedance: 22k balanced; 11k unbalanced

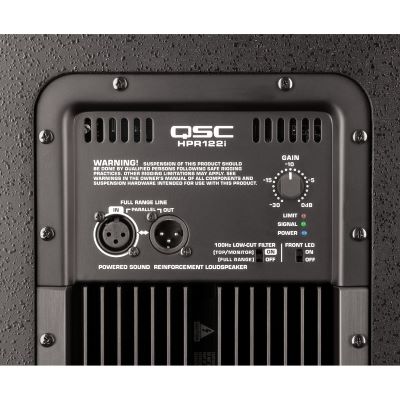

- Controls: Gain; Low-cut filter (Main / Monitor); Front LED On/Off; Power; Circuit breaker
- Indicators: Power; Signal; Limit
- Cooling: Convection
- Amplifier protection: Thermal and output power limiting; Output short circuit; Overtemperature muting; Driver DC protection
- Current consumption at 120 VAC (1/8 power EIA noise): 1.5A
- Enclosure: Painted Birch plywood
- Finish: Black textured paint
- Grille: Powder coated 16 gauge steel
- Suspension/Attachment Points: 9 M10 rigging locations
- Connectors: Balanced female XLR line level input; Balanced male XLR full range line level out
- Dimensions: 26.9 " H x 14.7 " W x 14.9 " D ((683 mm x 373 mm x 379 mm)
- Net weight: 60 lbs / 27.2 kg
