QSC HPR 181i Product Details

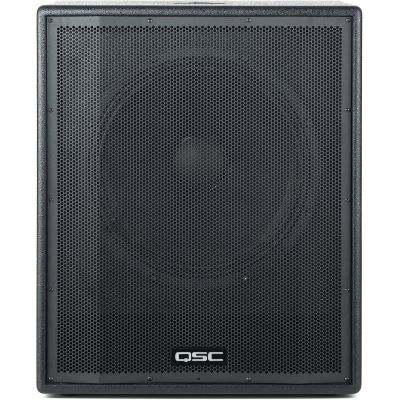

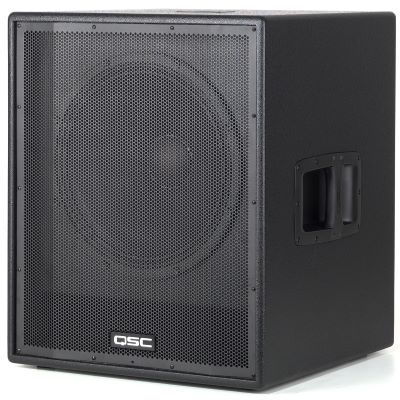

For high-level dance music or reinforcement of bass instruments and kick drum, an HPR series subwoofer will add low-frequency extension and power to any sound system. The HPR181i single 18" subwoofer offers truly impressive low frequency extension and output. A 4" voice-coil driver and a 700 watt power module work to produce 134 dB SPL peak, at 1 meter with frequency response down to 39 Hz. The HPR181i also includes a top-mounted 35mm pole socket and heavy-duty 3" casters to facilitate load-in and load-out.
Features:
- Power module based on the best-selling RMX series amplifier technology provides 700 watts of class H power
- Attractive and professional appearance
- Rugged birch enclosure
- Tour-grade 16 gauge steel grille
- Ergonomic handles with comfortable, non-slip grip

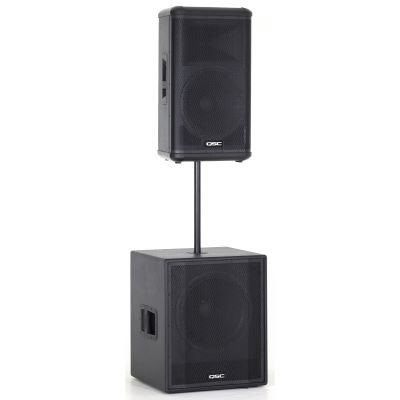

- 35 mm pole socket
Specifications:
- Configuration: 18" powered subwoofer
- Transducers: 18" cone transducer with 4" voice coil
- Frequency Response (-3 dB): 45 Hz - 95 Hz
- Frequency Range (-10 dB): 39 Hz - 145 Hz
- Maximum SPL (1 meter): 134 dB peak
- Power output: 700W Class H
- Input impedance: 22k balanced; 11k unbalanced
- Controls: Gain; Phase; Front LED On/Off; Power; Circuit breaker
- Indicators: Power; Signal; Limit
- Cooling: Convection
- Amplifier protection: Thermal and output power limiting
- Current consumption at 120 VAC (1/8 power EIA noise): 2.5A
- Enclosure: Painted Birch plywood
- Finish: Black textured paint
- Grille: Powder coated 16 gauge steel
- Suspension/Attachment Points: 3 M10 rigging locations

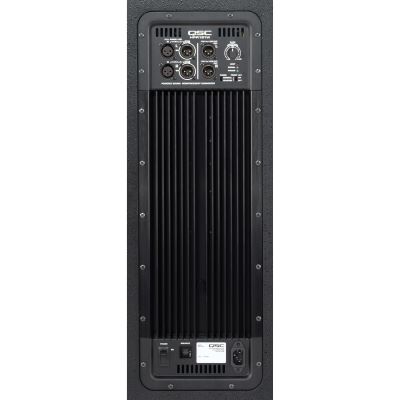

- Connectors: Balanced female XLR line level inputs x 2 (L+R); Balanced male XLR full range line level throughputs x 2 (L+R); Male XLR low-cut line level outputs x 2 (L+R)
- Dimensions: 28.6" H x 23.5" W x 22.9" D (727mm x 597mm x 582mm)
- Net weight: 127 lbs. / 58 kg
