QSC PL230

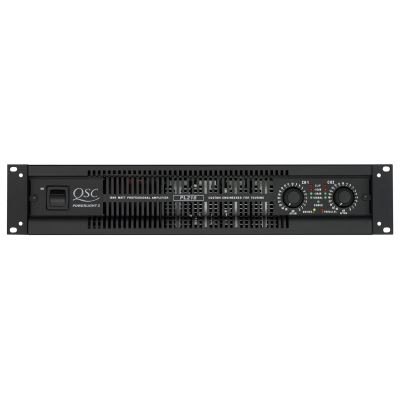

QSC PL230 Product Information

The PowerLight 2TM Series is a high performance line of amplifiers designed exclusively for the

touring and live sound professional. Four models range in power from 900 watts to 1850 watts per

channel, all in two-rack space chassis that are only 14" deep and 21 lbs. Each of these models are

available in two versions: a Base model and an "A" version. Base models are ideal for systems using

external signal processing. For those looking for integrated solutions, "A" versions offer internal

analog signal processing. Full DSP capabilities may also be added to any model with the addition of

the DSP-3 or DSP-4 Module. PowerWaveTM With PowerWaveTM technology, PowerLight 2 amplifiers take your

sound to a whole new level. Not only does it give you tighter bass and clean transparent highs,

PowerWaveTM also cuts waste heat, boosts reliability and gets rid of unwanted noise and hum.

PowerWaveTM power supply technology that provides ample current to the audio power circuitry by

charging the supply rails 230,000 times a second through an ultra-low impedance circuit. So unlike

amplifiers that use conventional supplies, the audio signal is never starved prematurely and remains

crisp and clean. Through continued improvement and innovation, QSC's new PowerLight 2 offer features

not found in any other professional audio amplifier. Features > PowerWaveTM Switching Technology for

improved audio performance > High-efficiency Class H output circuits lower AC current consumption and

cooling requirements by over 40% (PowerLight 224, 230, & 236) > Optional intake housing for the

addition of air filters > Increased airflow for improved thermal performance > DataPort for remote

computer control or the addition of external DSP modules > Detented gain controls with 1 dB steps for

precise calibration > Removable knobs with lock-out security plate prevents unauthorised tampering >

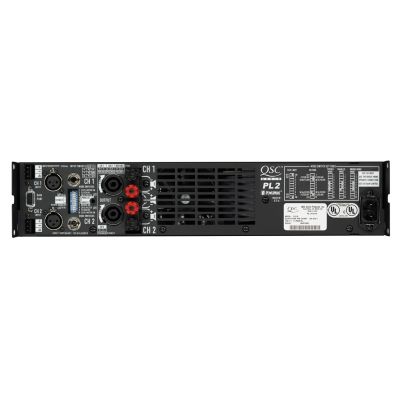

User defeatable clip limiters and selectable low-frequency filter (5, 30, or 50 Hz) > 1/4" TRS, XLR,

and 3-pin detachable terminal block input connectors > Neutrik Speakon and "Touch Proof" binding post

outputs > "Locking" IEC power cable remains secure on the road > Personalised badging available

PowerLight 2A built-in signal processing > Selectable input sensitivity/voltage gain

(+4 dBu, 32 dB, or 26 dB) > Adjustable two-way 4th-order Linkwitz-Riley crossover with low-frequency

delay for driver time alignment > Adjustable high frequency attenuation > Independent power limiters

on each channel with adjustable threshold, attack and release times > Adjustable CD Horn equalisation
