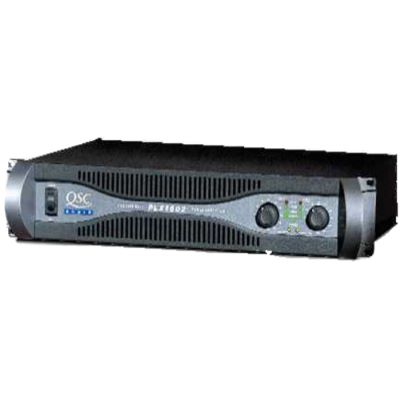

QSC PLX1202 2U rack mount Power Amp - 2 x 325 W

A line of amplifiers that defines high impact. Up to 3,400 watts in a 2 rack-unit chassis that's only

13" deep and 21 lbs. We included our exclusive PowerWave(TM) Technology used in our award-winning

PowerLight(TM) Series for chest-pounding bass and crystal-clear highs. It also features hum-free noise

floor and ultra-low distortion of .03% THD. To keep PLX running under the most demanding conditions,

we've even added our Advanced Thermal Management System. PLXs offer the reliability of a company

that's been building professional amplifiers for over 30 years.

FEATURES

Exclusive PowerWave power supply for superior bass and lighter weight

Ultra-low distortion (0.03% THD at 8 ohms) & studio-quality noise floor (-107 dB)

LED indicators include bridge mono and parallel input modes

Compact 2 RU, 21 lbs. and 13" deep chassis fits into any rack

Class H output reduces AC power draw and heat by 40% (2402, 3002, & 3402)

Selectable clip limiters and subsonic filters reduce distortion and protect speakers

Variable-speed fan for low noise and solid 2 ohm performance

Both 1/4" TRS & XLR inputs, Speakon(TM) and shock-proof binding post outputs

3-year warranty plus optional 3-year extension available





PLX SPECIFICATIONS               PLX1202     PLX1602     PLX2402     PLX3002     PLX3402

                                            STEREO MODE, Both Channels Driven

8 ohms 20 Hz-20 kHz 0.03% THD      200W       300W        425W        550W        700W

4 ohms 20 Hz-20 kHz 0.05% THD      325W       500W        700W        900W        1100W

2 ohms 1 kHz 1% THD                600W       800W        1200W       1500W       1700W

                                                    BRIDGE MONO MODE

16 ohms 20 Hz-20 kHz 0.1% THD      400W       600W        850W        1100W       1400W

8 ohms 20 Hz-20 kHz 0.1% THD       700W       1100W       1500W       2000W       2200W

4 ohms 1 kHz 1% THD                1200W      1600W       2400W       3000W       3400W

Signal to Noise (20 Hz-20 kHz)    <-106 dB   <-107 dB    <-108 dB    <-107 dB    <-107 dB

Input Sensitivity @ 8 ohms         1.0Vrms    1.2Vrms     1.5Vrms     1.7Vrms     1.9Vrms

Input Sensitivity @ 4 ohms         0.9Vrms    1.1Vrms     1.3Vrms     1.5Vrms     1.7Vrms

Voltage Gain                      40x(32dB)  40x(32dB)   40x(32dB)   40x(32dB)   40x(32dB)

Output Circuitry                    AB         AB         2-Step      2-Step      2-Step

                                                          Class H     Class H     Class H

Power Requirements

(1/8 Power Pink Noise @ 4 Ohm)      6A         10A         8A           10A         12A

ALL MODELS

Distortion (SMPTE-IM) Less than 0.01%

Distortion (Typical)

20 Hz-20 kHz: 10 dB below rated power

1.0 kHz and below: full rated power .

Less than 0.01% THD

Less than 0.01% THD

Frequency Response 20 Hz-20 kHz, +/- 0.2 dB / 8 Hz-50 kHz, +0, -3 dB

Damping Factor Greater than 500

Input Impedance 6 k ohms unbalanced, 12 k ohms balanced

Input Clipping 10 Vrms (+22 dB)

Cooling Variable-speed fan, rear-to-front air flow

Connectors, each channel Input: 3-pin XLR & 1/4" TRS balanced

Output: Neutrik Speakon(TM) and touch-proof binding posts

Amplifier Protection Full short circuit, open circuit, thermal, ultrasonic, and RF protection

Stable into reactive or mismatched loads

Load Protection On/off muting, DC-fault power supply shutdown

Dimensions 19" (48.3 cm) rack mounting, 3.5" (8.9 cm) tall (2 rack spaces)

13.25" (33.7 cm) deep (from front mounting rails)

Gain 40x (32 dB)

Weight 21 lb (9.5 kg) net, 27 lb (12.3 kg) shipping
